DPU45Yeh US

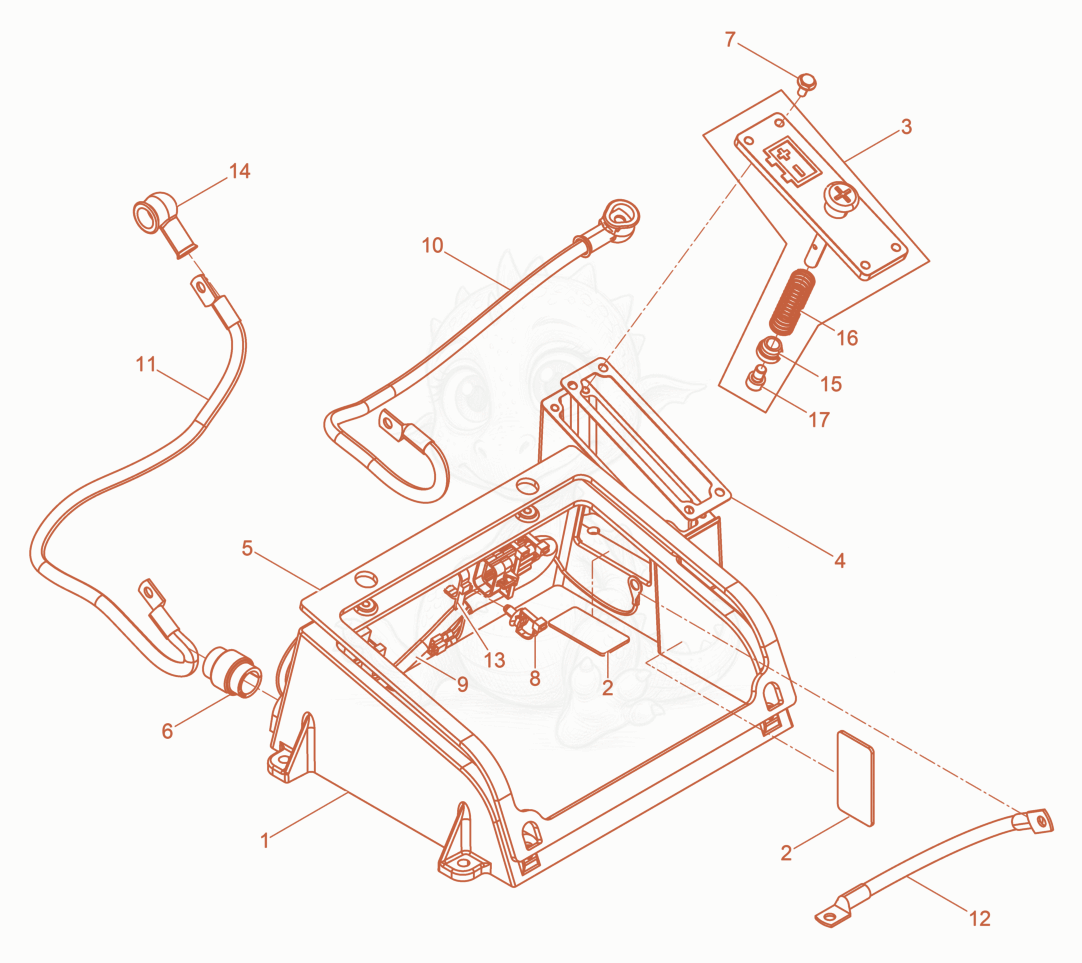

DPU45YEHUS Battery protection cpl. Diagram
- Battery protection - 5100011289×1
- Pad - 5100010149×2
- Starting device cpl. - 5100011304×1
- Gasket - 5000216678×1
- Gasket - 5000220233×1
- GLAND - 5000220432×1
- SCREW-CORRUGATED HD. - 5000210194×4
- Tie cable - 5100011341×7
- Cable harness - 5100013772×1
- battery boost cable - 5100010865×1
- Positive pole strap - 5100015100×1
- Negative pole strap - 5100010866×1
- CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×1
- COVER-STARTER PROTECTOR - 5000058696×1
- Bush - 5100009601×1
- Compression spring 1x17,5x100x8,5 - 5100011308×1
- SCREW M8X12 SOC.HD - 5000013574×1
