V.Plate DPU 4045Ye

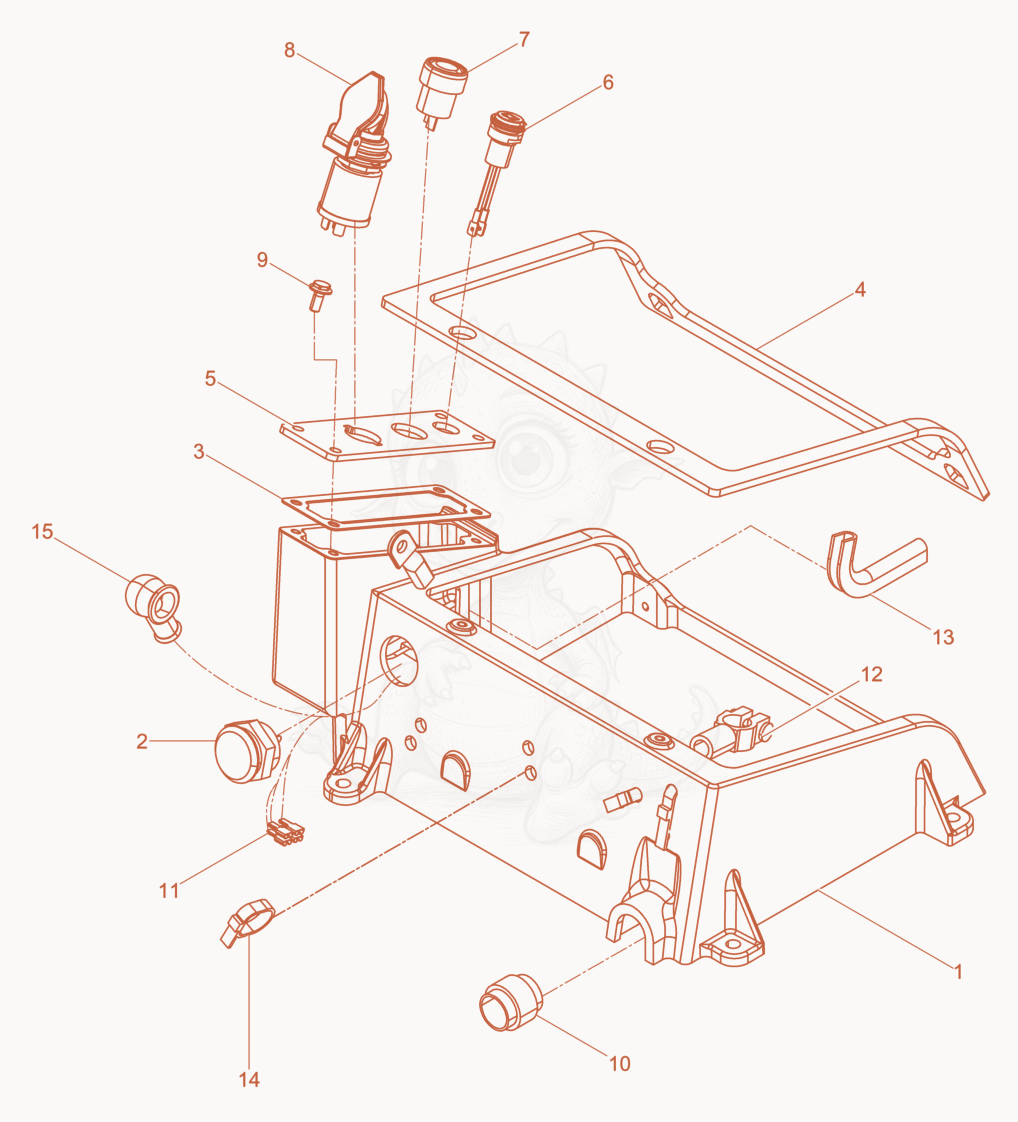

DPU4045YE Battery protection cpl. Diagram

Exploded parts diagram of the Battery protection cpl. of a Wacker Neuson DPU4045YE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000220187Not stocked
    Battery protection×1
  • 25000220234Price
    SIGNAL-ACCOUSTIC - 5000220234×1
  • 35000216678Price
    Gasket - 5000216678×1
  • 45000220233Price
    Gasket - 5000220233×1
  • 55000216679Price
    Plate - 5000216679×1
  • 65000129797Price
    LIGHT-IGNITION PILOT LED - 5000129797×1
  • 75000044682Price
    SWITCH-PUSH BUTTON - 5000044682×1
  • 85000220116Price
    ignition starter switch - 5000220116×1
  • 95000210194Price
    SCREW-CORRUGATED HD. - 5000210194×4
  • 105000220432Price
    GLAND - 5000220432×1
  • 115000220393Not stocked
    Cable harness×1
  • 125000220394Not stocked
    Positive pole strap×1
  • 135000220395Price
    Edge protection - 5000220395×1
  • 145000047388Price
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×4
  • 155000058696Price
    COVER-STARTER PROTECTOR - 5000058696×1
