DPU 3060H-TS-VIBROPLATE

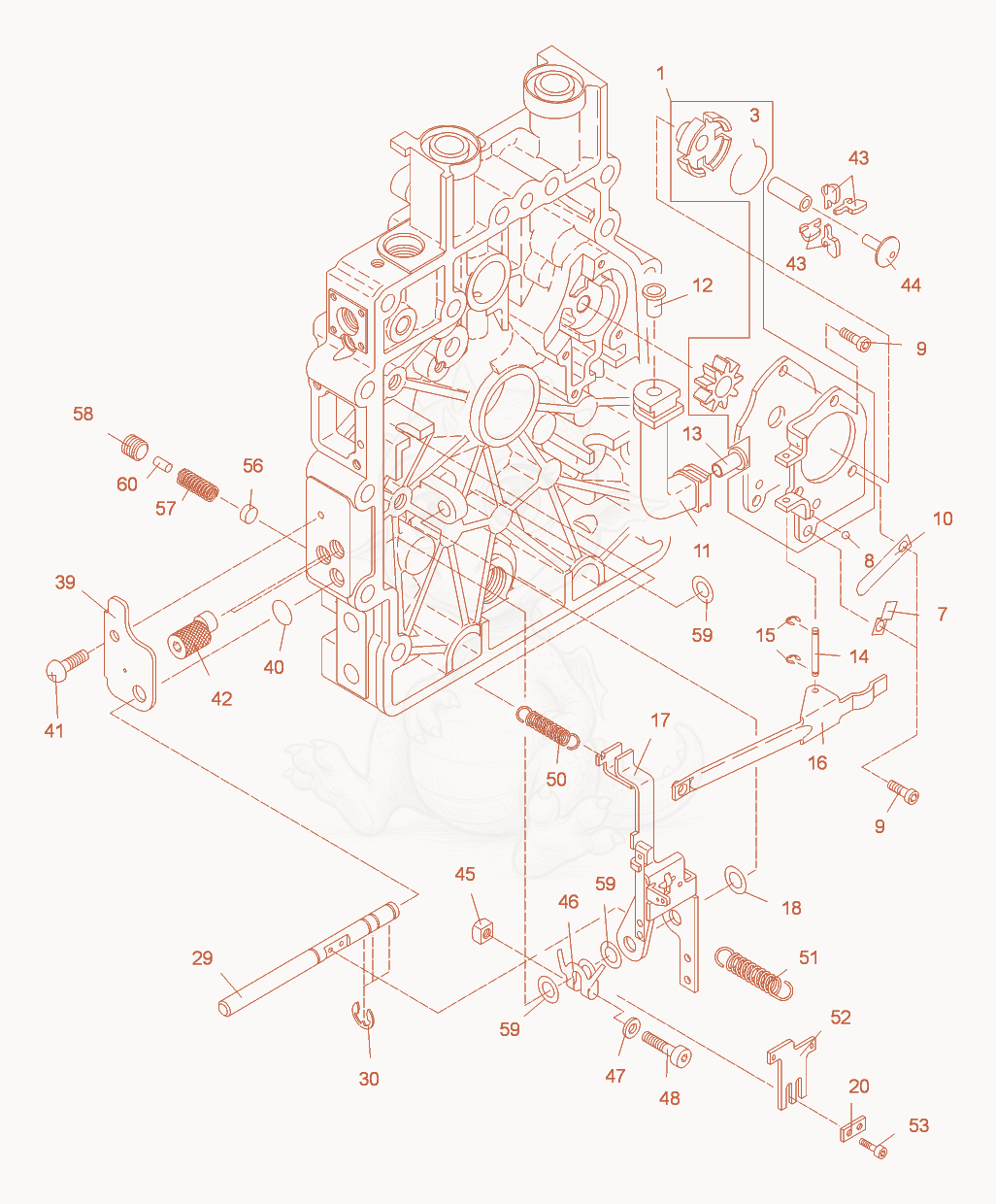

DPU3060H-TS Oil pump-Governor-Adjustment R.P.M. Diagram

Exploded parts diagram of the Oil pump-Governor-Adjustment R.P.M. of a Wacker Neuson DPU3060H-TS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000151304Price
    COVER-PUMP,OIL - 5000151304×1
  • 35000151305Price
    CLIP-CIRCLE - 5000151305×1
  • 75000108778Price
    STRAP-RETAINING - 5000108778×1
  • 85000108779Price
    BALL 3.5MM - 5000108779×1
  • 95000151308Price
    SCREW-ALLEN M5X12 - 5000151308×4
  • 105000108777Price
    SPRING-FLAT 0.4MM - 5000108777×1
  • 115000108775Price
    TUBE-SUCTION,OIL - 5000108775×1
  • 125000108774Price
    INSERT-TUBE - 5000108774×1
  • 135000108776Price
    INSERT-TUBE - 5000108776×1
  • 145000108781Price
    SHAFT - 5000108781×1
  • 155000108780Price
    CLIP-CIRCLE - 5000108780×2
  • 165000129003Not stocked
    Reversing Lever×1
  • 175000151316Price
    LEVER-GOVERNOR - 5000151316×1
  • 185000108782Price
    DISC 8X14X0.5 - 5000108782×1
  • 205000108789Price
    PLATE-INTERMEDIATE - 5000108789×1
  • 295000108795Not stocked
    Shaft×1
  • 305000151327Price
    CLIP-CIRCLE 7 - 5000151327×3
