DPU 130Le

DPU130LE Block-Hydraulic Diagram

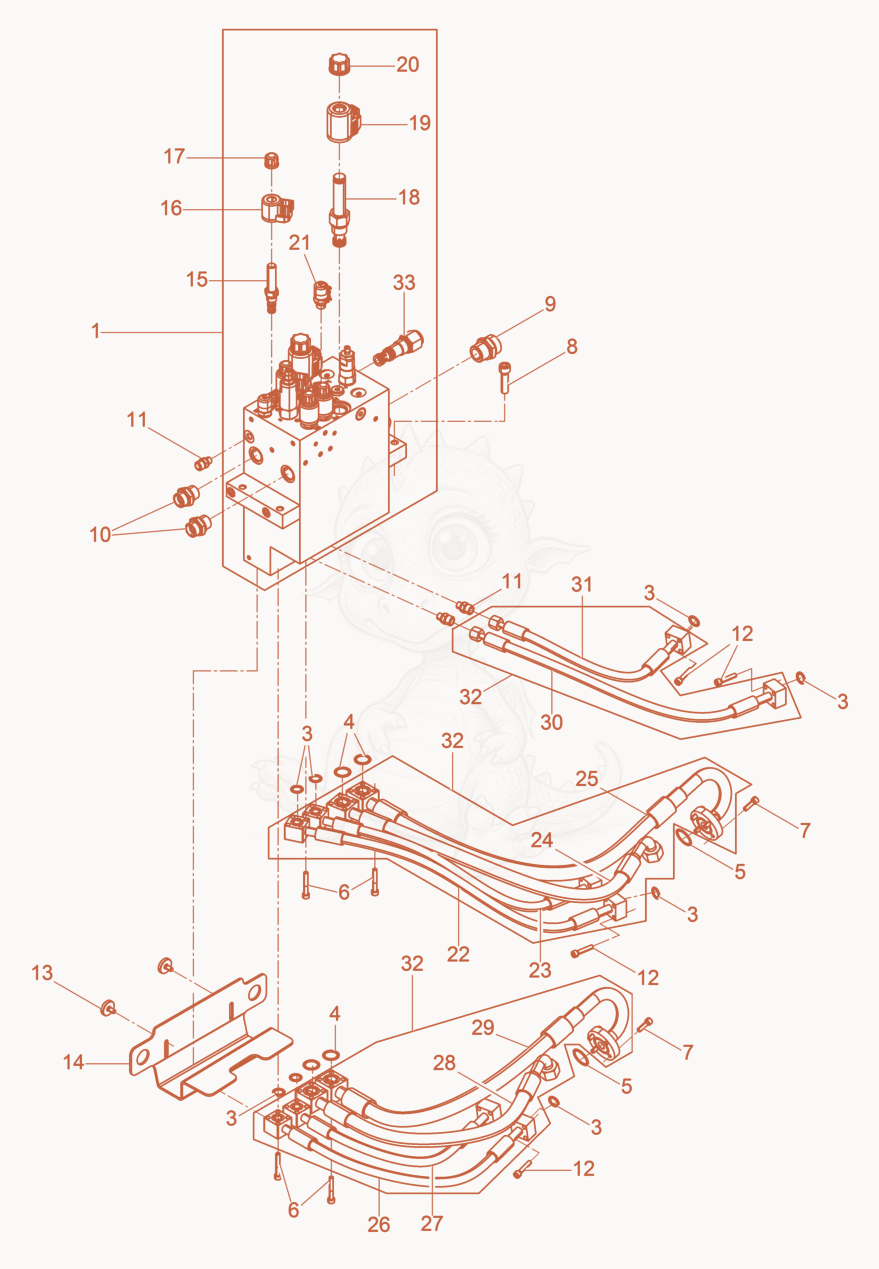

Exploded parts diagram of the Block-Hydraulic of a Wacker Neuson DPU130LE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100031274Not stocked
    Block-Hydraulic×1
  • 35000017549Price
    O-RING 14 X 2.5-70 Sh - 5000017549×10
  • 45000210116Price
    O-RING - 5000210116×4
  • 55000210115Price
    O-RING - 5000210115×2
  • 65000011547Price
    SCREW M6 X 40 SOC.HD. - 5000011547×32
  • 75000011551Price
    SCREW M6 X 20 SOC.HD. - 5000011551×8
  • 85000011532Price
    SCREW M10 X 40 8.8,SOC - 5000011532×4
  • 95000046094Price
    FITTING-PIPE L22R - 5000046094×1
  • 105000046093Price
    FITTING-PIPE L15R - 5000046093×2
  • 115000220044Price
    SCREWED SOCKET - 5000220044×3
  • 125000011549Price
    SCREW M6 X 30 SOC.HD. - 5000011549×24
  • 135000220184Price
    SCREW-THUMB - 5000220184×2
  • 145000220091Price
    Protective cloth - 5000220091×1
  • 155100032214Not stocked
    Control Valve×4
  • 165100032215Not stocked
    Solenoid×4
  • 175100032216Not stocked
    Valve cap×4
  • 185100032217Not stocked
    Valve Throttle×2
  • 195100032218Not stocked
    Solenoid×2
  • 205000220194Price
    CAP-VALVE - 5000220194×2
  • 215000220198Price
    Test port - 5000220198×2
  • 225000206458Price
    HOSE PIPE - 5000206458×1
  • 235000206459Price
    HOSE PIPE - 5000206459×1
  • 245000206460Price
    HOSE PIPE - 5000206460×1
  • 255000206461Price
    HOSE PIPE - 5000206461×1
  • 265000206462Price
    HOSE PIPE - 5000206462×1
  • 275000206463Price
    HOSE PIPE - 5000206463×1
  • 285000206464Price
    HOSE PIPE - 5000206464×1
  • 295000206465Price
    HOSE PIPE - 5000206465×1
  • 305000208237Price
    tUBE AIR FILTER - 5000208237×1
  • 315000208238Price
    TUBE-BREATHER - 5000208238×1
  • 325000211785Price
    HOSE SYSTEM-HYDRAULIC - 5000211785×1
  • 335100032219Not stocked
    pressure maintenance valve×2
