Vibroplate DPU100-70

DPU100-70 Upper Mass cpl. Diagram

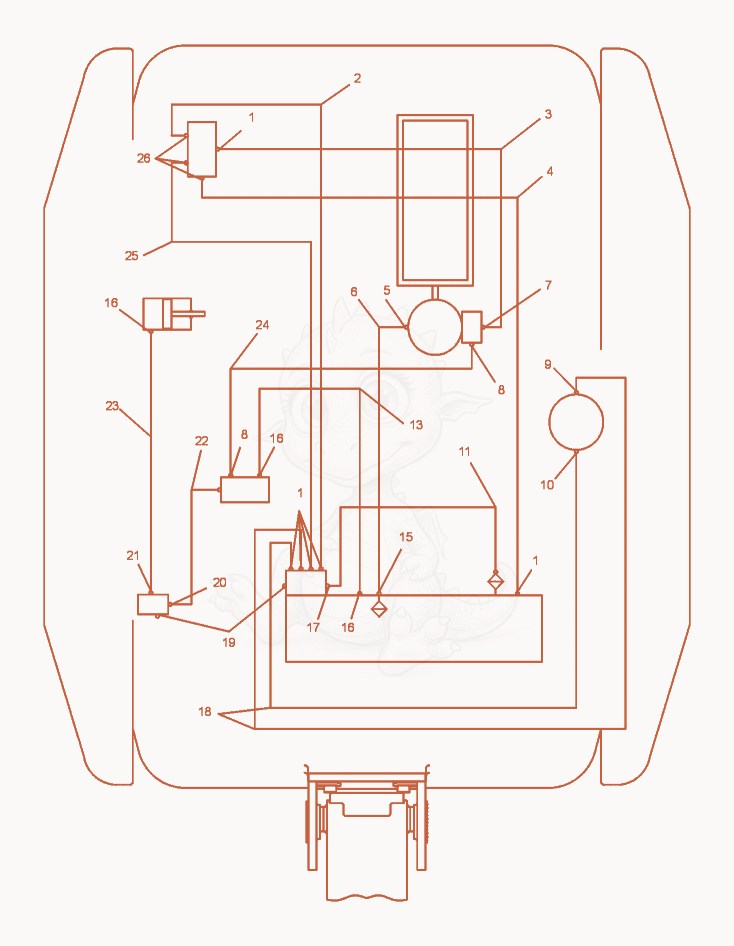

Exploded parts diagram of the Upper Mass cpl. of a Wacker Neuson DPU100-70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000046093Price
    FITTING-PIPE L15R - 5000046093×6
  • 25000095990Price
    HOSE - 5000095990×1
  • 35000095988Price
    HOSE - 5000095988×1
  • 45000105942Price
    HOSE - 5000105942×1
  • 55000109441Price
    flange - 5000109441×1
  • 55000031397Price
    O-RING 26 X 2.5-70 Sh - 5000031397×1
  • 55000095966Price
    CLIP-HOSE - 5000095966×1
  • 65000097505Price
    CLIP-HOSE - 5000097505×1
  • 75000049229Price
    FLANGE-SCREW CONNECTION - 5000049229Unknown×1
  • 75000019132Not stocked
    O-ring×1
  • 85000046461Price
    FITTING-PIPE L10R - 5000046461×2
  • 95000048697Price
    FITTING-ELBOW,XSWVF15L40,FLNGD - 5000048697×1
  • 105000067413Price
    CONNECTOR-BOLTED - 5000067413×1
  • 115000105943Not stocked
    Hose pipe×1
  • 125000047262Price
    SEAL-RING 27 X 32 - 5000047262×2
  • 135000124549Not stocked
    Hose pipe×1
  • 155000095966Price
    CLIP-HOSE - 5000095966×1
  • 165000046092Price
    FITTING-PIPE L12R - 5000046092×3
  • 175000063739Price
    FITTING-PIPE L18R - 5000063739×1
  • 185000124550Price
    HOSE-PIPE - 5000124550×2
  • 195000066379Not stocked
    Test port×2
  • 205000046091Not stocked
    Screwed socket×1
  • 215000048681Price
    FITTING-PIPE L12R1/4 - 5000048681×1
  • 225000124547Price
    HOSE-PIPE - 5000124547×1
  • 235000124551Price
    HOSE-PIPE - 5000124551×1
  • 245000124548Price
    HOSE-PIPE - 5000124548×1
  • 255000095989Price
    HOSE - 5000095989×1
  • 265000048693Price
    FITTING-ELBOW 90,SWVE8LR - 5000048693×3
