DPS3060-VIBROPLATE

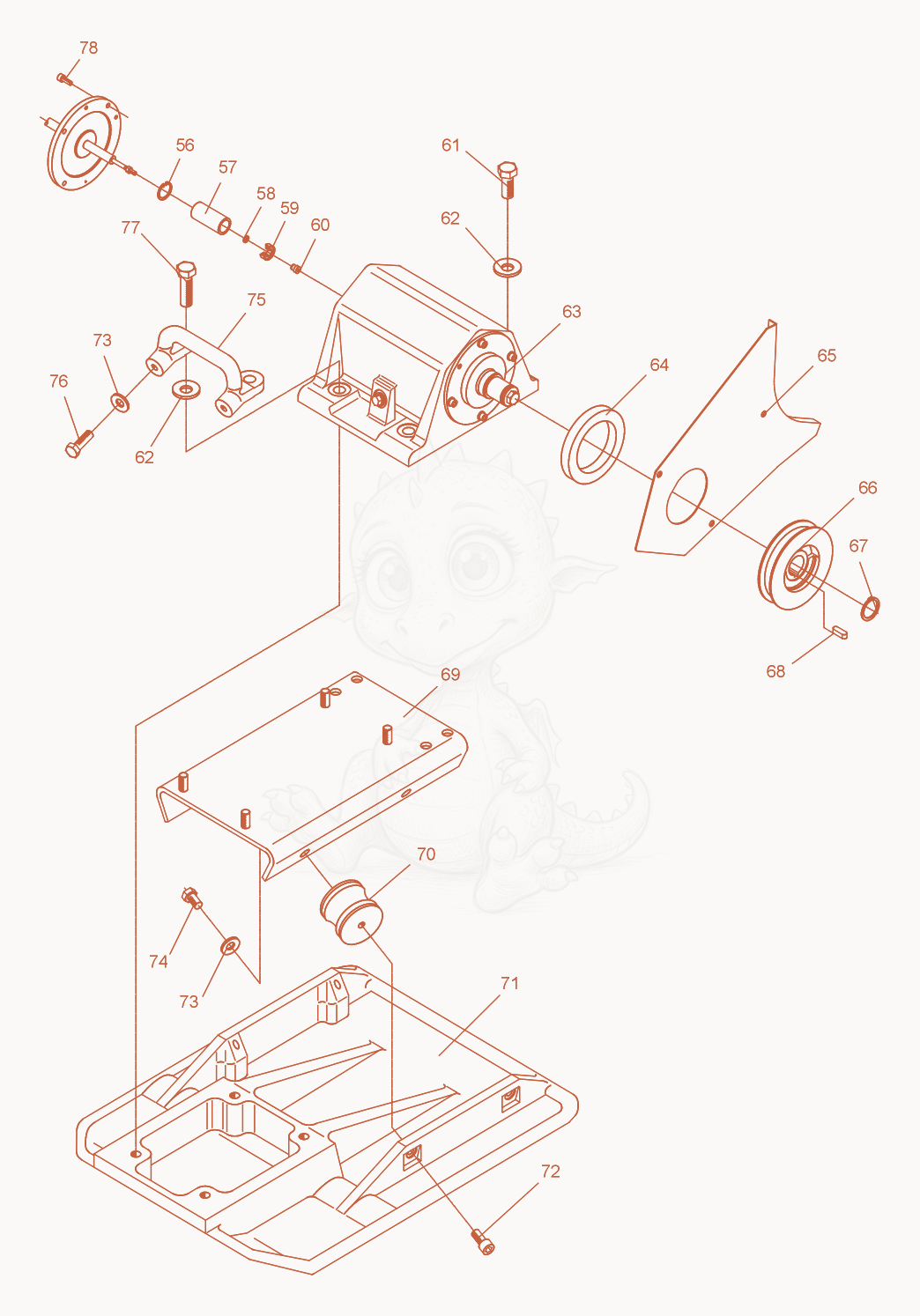

DPS3060 Vibratory Plate cpl. Diagram

Exploded parts diagram of the Vibratory Plate cpl. of a Wacker Neuson DPS3060, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 565002004982Price
    RET.RING-INT 25MMX1.2MM, - 5002004982×1
  • 575000096350Not stocked
    Pipe×1
  • 585000010625Price
    WASHER B5.3 FLAT - 5000010625×1
  • 595002006596Price
    BEARING-RADIAL BALL,608 - 5002006596×1
  • 605000096351Not stocked
    Nut×1
  • 615000011522Price
    SCREW M16 X 35 HX.HD. - 5000011522×2
  • 625000021988Price
    WASHER-LOCK HS16,HIGH TENSION - 5000021988×4
  • 635000096682Not stocked
    Exciter cpl.×1
  • 645000096352Not stocked
    Seal×1
  • 655000033176Not stocked
    Plate cpl.×1
  • 665000033179Not stocked
    V-belt pulley×1
  • 675002001815Price
    RET.RING-EXT 30MMX1.5MM, - 5002001815×1
  • 685002006155Price
    KEY A8 X 7 X 25 - 5002006155×1
  • 695000032749Not stocked
    Console cpl.×1
  • 705000021104Price
    SHOCKMOUNT 68 X 55-70SH,FORM C - 5000021104×4
  • 715000039578Not stocked
    Base plate×1
  • 725000011530Not stocked
    Cheese head screw×4
  • 735000031565Price
    WASHER-LOCK A12 - 5000031565×6
  • 745000012368Price
    SCREW M12 X 20 HX.HD. - 5000012368×4
  • 755000049529Price
    HANDLE-LIFT - 5000049529×1
  • 765000011421Not stocked
    Hexagonal head cap screw×2
  • 775000011519Price
    SCREW-M16 X 50,HX HD - 5000011519×2
  • 785000011553Price
    SCREW M6 X 16 SOC.HD. - 5000011553×4
