Vibration Plate DPS 1850Y

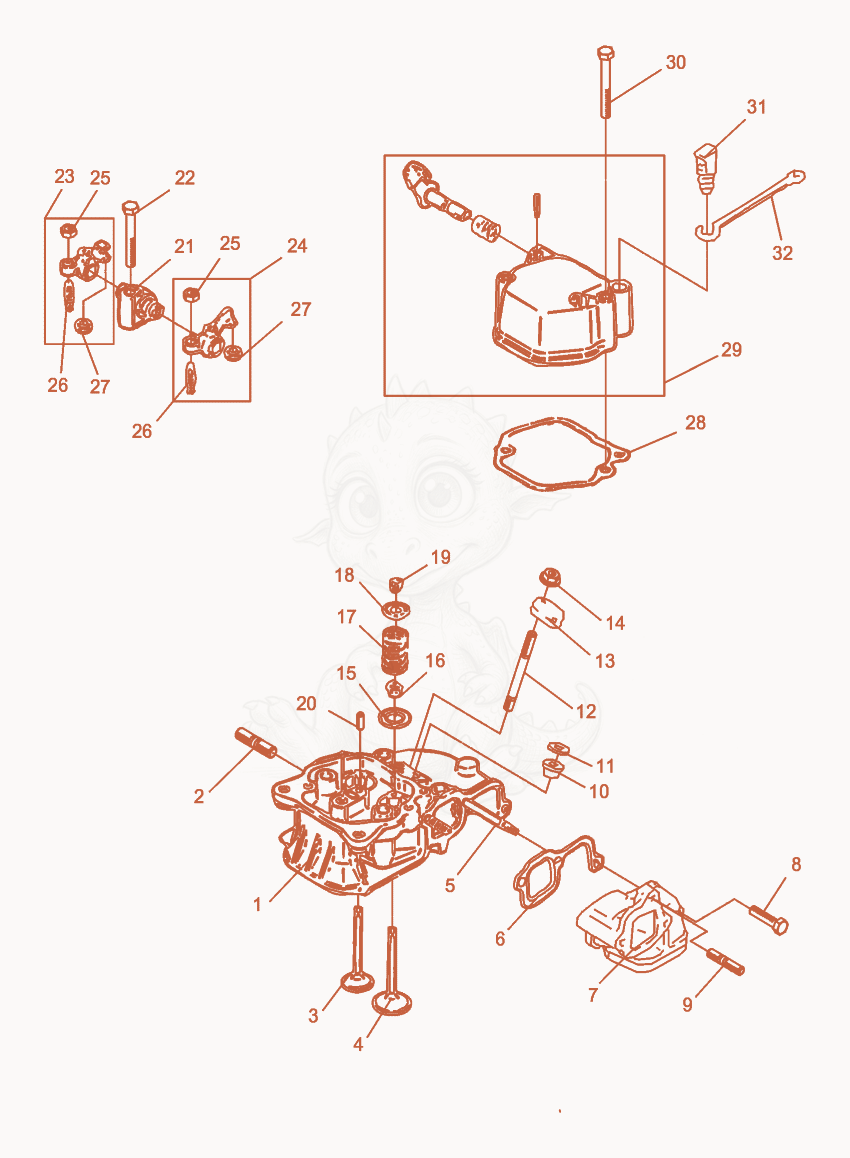

DPS1850Y Cylinder head Diagram
- HEAD-ENGINE CYLINDER - 5000073623×1
- STUD M8 X 18 - 5000020343×2
- VALVE-OUTLET - 5000096772×1
- VALVE-INTAKE - 5000073624×1
- 55000013512Not stockedStud bolt×2
- GASKET - 5000073651×1
- PIPE-AIR INTAKE ELBOW - 5000073650×1
- 85000073614Not stockedScrew×1
- 95000013505Not stockedStud bolt×1
- GASKET - 5000073632×1
- SPACER - 5000073633×1
- 125000034394Not stockedStud bolt×2
- 135000073642Not stockedHolder×1
- 145000095948Not stockedHexagon nut×2
- Washer - 5000073634×2
- SEAL-ENGINE VALVES - 5000073631×2
- SPRING-ENGINE VALVES - 5000073626×2
- HOLDER-VALVE SPRINGS - 5000073627×2
- SET-VALVE CONES - 5000073628×2
- 205000017787Not stockedSpring pin×1
- SUPPORT-ROCKER ARM - 5000073629×1
- SCREW M8 X 45,HEX.FLANGE - 5000085536×1
- Rocker arm outlet - 5000096762×1
- Rocker arm inlet - 5000096763×1
- 255000010803Not stockedHexagon nut×2
- CONTROL-ADJUSTING SCREW - 5000096764×2
- Cap - 5000096765×2
- GASKET - 5000073643×1
- COVER-ASSY.,CYLINDER HEAD - 5000073644×1
- SCREW M6 X 55,HX.FLANGE - 5000073647×2
- PISTON-PLUNGER,STARTING DEVICE - 5000073754×1
- HOLDER-STARTER PLUNGER - 5000073755×1
