Drive Unit D3.5Y2

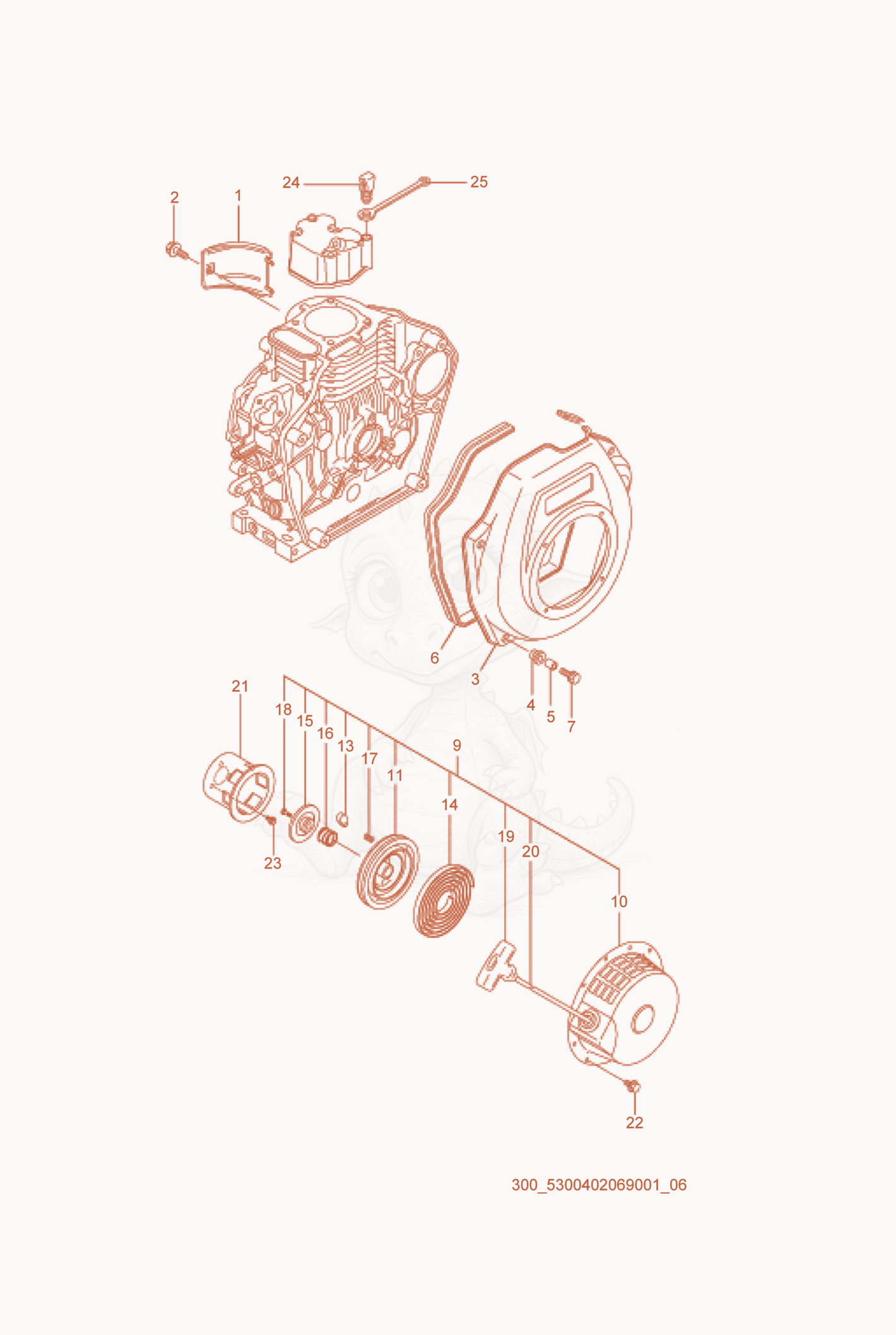

D3.5Y2 Starting device Diagram
- COVER-CYLINDER - 5000119896×1
- BOLT-M6 X 12 - 5000119897×1
- 35000405798Not stockedFan case×1
- 45000405799Not stockedGrommet×4
- COLLAR,FAN CASE - 5000210542×4
- 65000405800Not stockedSeal×1
- 75000405801Not stockedBolt×4
- 95000405802Not stockedRecoil starter×1
- 105000405803Not stockedStarter housing×1
- 115000405804Not stockedReel×1
- 135000405805Not stockedRatchet×1
- SPRING,SPIRAL - 5000210548×1
- COVER,RATCHET - 5000210549×1
- spring - 5000210550×1
- SPRING-RETURN - 5000210551×1
- 185000210552Not stockedScrew×1
- KNOB-STARTER - 5000210553×1
- 205000405806Not stockedRope×1
- 215000405807Not stockedPulley×1
- BOLT-M6 X 8 - 5000119905×4
- BOLT-M6 X 12 - 5000119897×3
- 245000405808Not stockedPlunger×1
- 255000405809Not stockedHolder×1
