CT36AGP-TROWEL

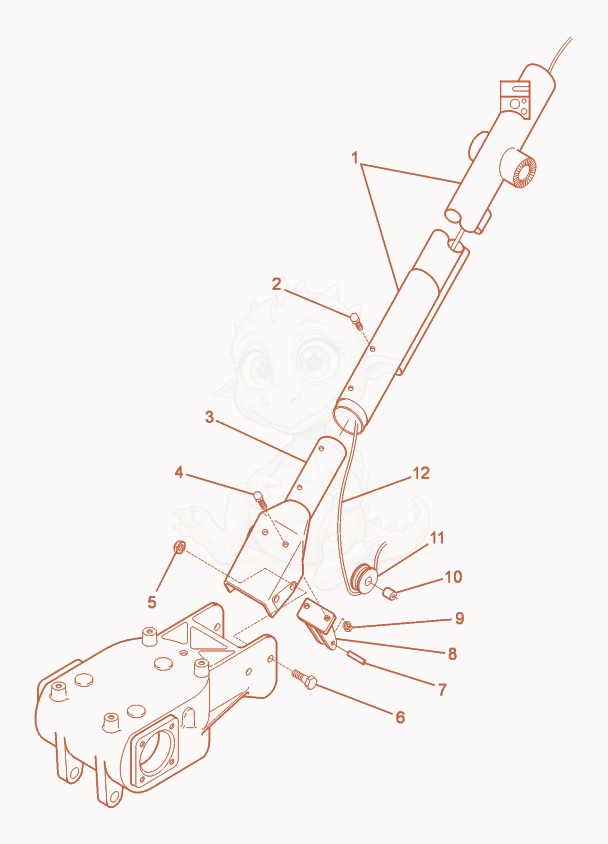

CT36AGP Lower Handle Diagram

Exploded parts diagram of the Lower Handle of a Wacker Neuson CT36AGP, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000079376Not stocked
    Handle pipe×1
  • 25000012361Price
    SCREW M8 X 16 HX.HD. - 5000012361×2
  • 35000111484Not stocked
    Handle base mount×1
  • 45000012362Price
    SCREW M8 X 20 HX.HD. - 5000012362×2
  • 55000010365Price
    NUT-LOCK M10 HEX. - 5000010365×4
  • 65000011318Price
    SCREW M10 X 40 HX.HD. - 5000011318×4
  • 75000013769Not stocked
    Spring pin×1
  • 85000076182Not stocked
    Holder×1
  • 95000010367Price
    NUT-LOCK M8 HEX - 5000010367×2
  • 105000073348Price
    BUSHING - 5000073348×1
  • 115000073334Not stocked
    Washer×1
  • 125000111596Price
    CABLE-PITCH CONTROL - 5000111596×1
