CRT48-57K Trowel, Power Steer

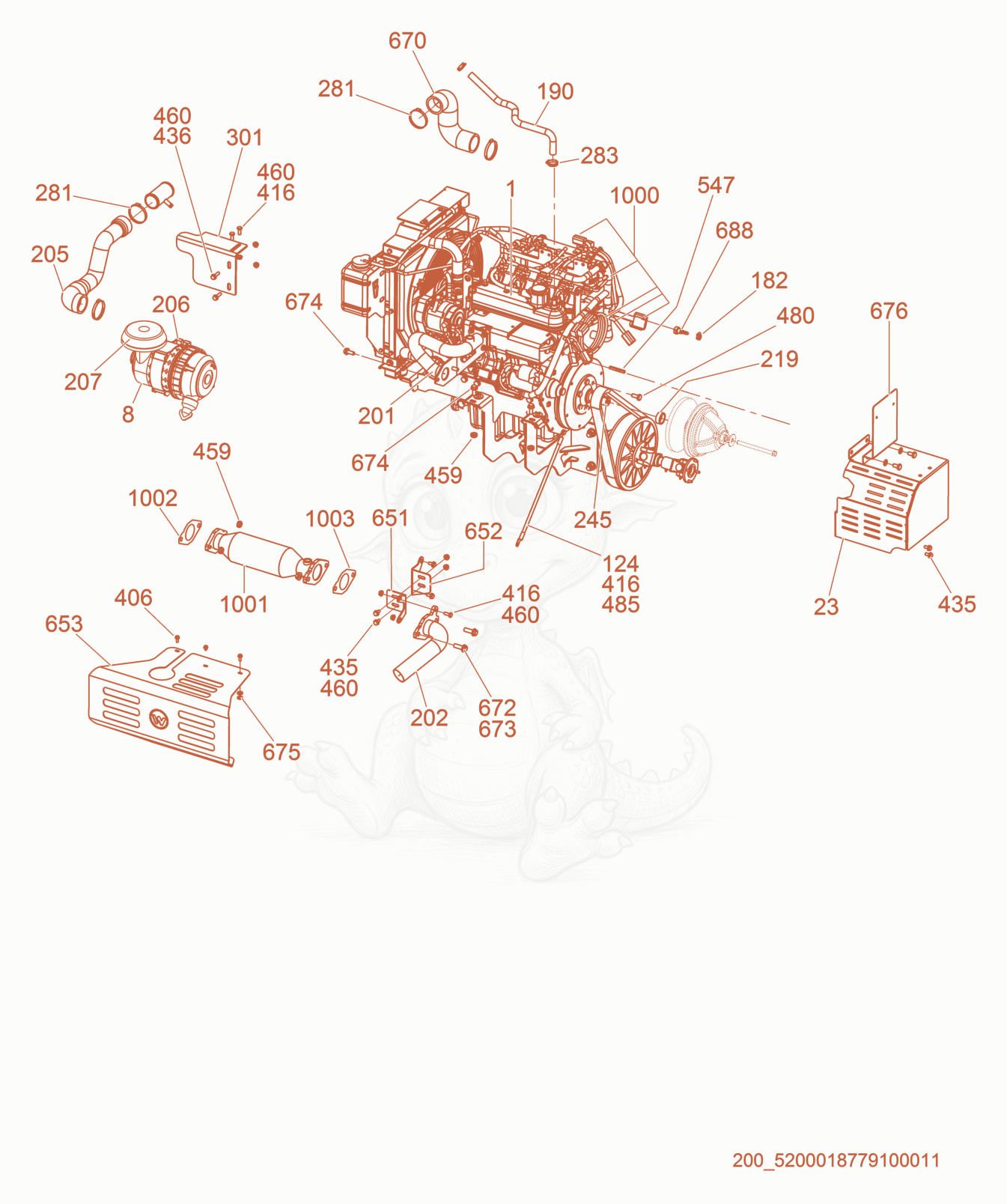

CRT48-57K-PS Intake/Exhaust Diagram
- 15100049724Not stockedEngine-Kubota WG1605×1
- Air Cleaner cpl. - 5200001994×1
- Filter-Air,Main Element - 5200015964×1
- Filter-Air,Secondary Element - 5200015965×1
- Beltguard-1605 P-5000176420 - 5200011442×1
- CABLE-GROUNDING,16 - 5000165249×1
- CLAMP-THREADED,.21-.63 - 5000028707×1
- 1905100015325Not stockedVent hose×1
- Pipe-Engine/Catalytic Converter - 5200011463×1
- Pipe-Exhaust - 5200011464×1
- 2055200025039Not stockedHose×1
- Wrap-Hose,RS-209HT x 6.5 long - 5100020468×1
- BRACKET-AIR CLEANER - 5200008972×1
- CAP-RAIN,AIR CLEANER,EUROPICLON 100 - 5200025713×1
- 2195200002431Not stockedClutch spacer×1
- LABEL-SHEET OPER.SAFETY,CRT - 5000172840×1
- Shaft-Stub, 1605 - 5200022982×1
- CLAMP-THREADED,1.56-2.50 - 5000112287×4
- CLAMP-WORM,9/16X1-1/16 ,SST - 5000180084×2
- 3015200022958Not stockedBracket×1
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×3
- SCREW M8 X 20 HX.HD. - 5000012362×5
- SCREW M8 X 16,HX.HD,SER.FLG - 5000079363×8
- SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×2
- NUT-LOCK M10,SERR.,FLANGE - 5000089316×2
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
- SCREW-M10x1.25x25,HHCS,8.8 W/202 - 5200017912×6
- WASHER-FLAT,M8,ZINC - 5000010622×1
- KEY-SQ,1/4 X 2.25 HARDENED,UNDERSIZED - 5000165520×1
- BRACKET-ADJUSTABLE,MUFFLER P-5000176420 - 5200023759×1
- Bracket-Exhaust P-5000176420 - 5200023693×1
- 6535200024271Not stockedShield×1
- 6705200025038Not stockedHose×1
- SCREW M12X35-10.9 HX SER FLG - 5000155247×2
- NUT-LOCK M12,HX.SER.FLG.ZP - 5000116124×2
- SCREW M10X25 HEX,SER.FLG ZP - 5000116164×4
- 6755000084896Not stockedWasher×4
- BRACKET-FUSE BOX 57K P-5000176420 - 5100034392×1
- 6885100015061Not stockedStraight fitting×1
- CONVERTER - KUBOTA - 5100020966×1
- CATALYST GASKET 1 - Kubota - 5100018832×1
- CATALYST GASKET 2 - Kubota - 5100018833×1
