CRT48-35L Trowel

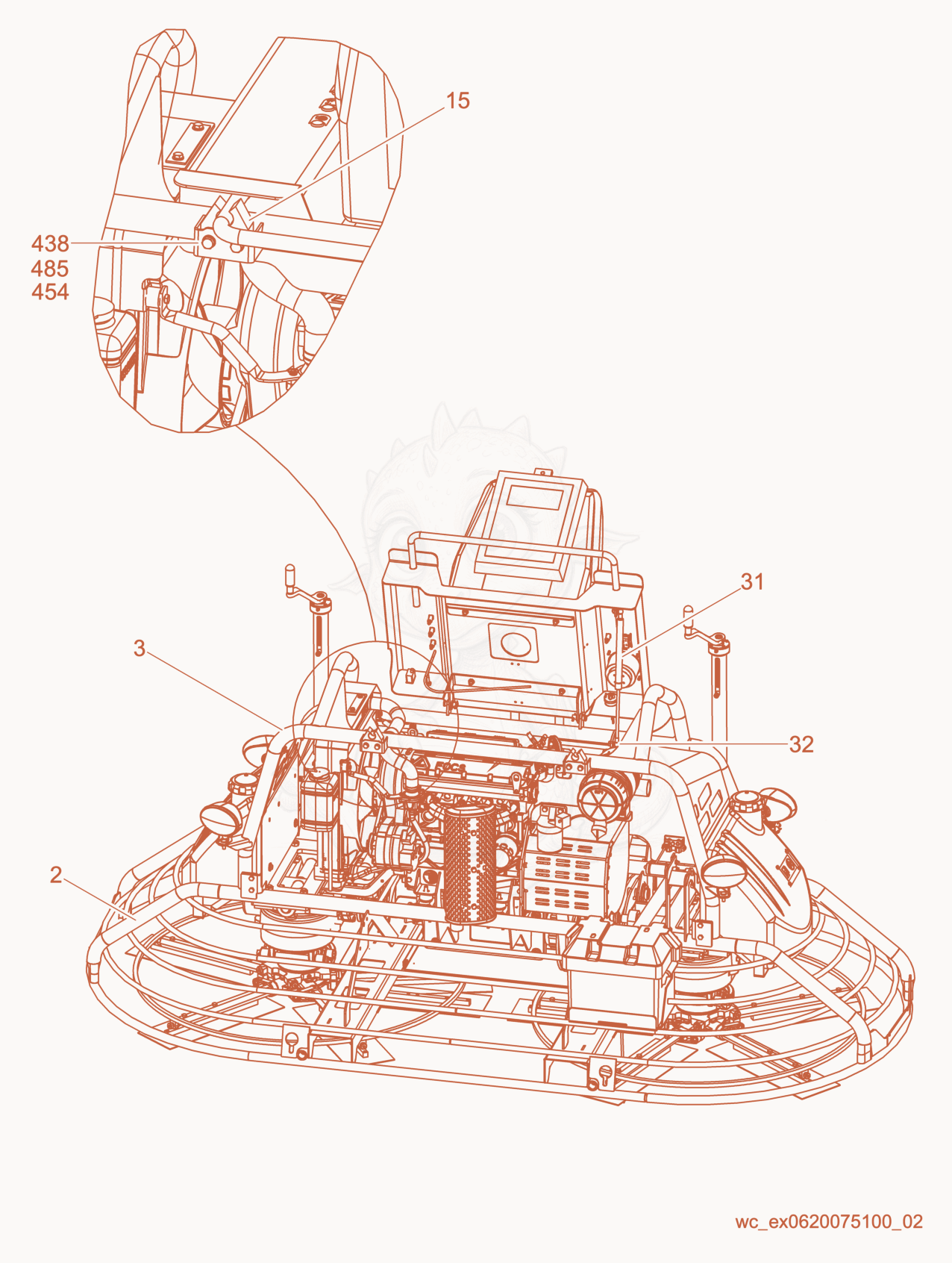

CRT48-35L Machine cpl./Back View Diagram

Exploded parts diagram of the Machine cpl./Back View of a Wacker Neuson CRT48-35L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000164000Not stocked
    Frame cpl.×1
  • 35200023465Not stocked
    Upper frame×1
  • 155000112303Price
    BRACKET-CRANK HOLDER - 5000112303×2
  • 315000164953Not stocked
    Spring cylinder×1
  • 325000155125Price
    STUD-BALL 10 x M8 - 5000155125×2
  • 4385000011341Price
    SCREW M8 X 40 HX.HD. - 5000011341×4
  • 4545000010367Price
    NUT-LOCK M8 HEX - 5000010367×4
  • 4855000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×4
