CRT48-35L-PS

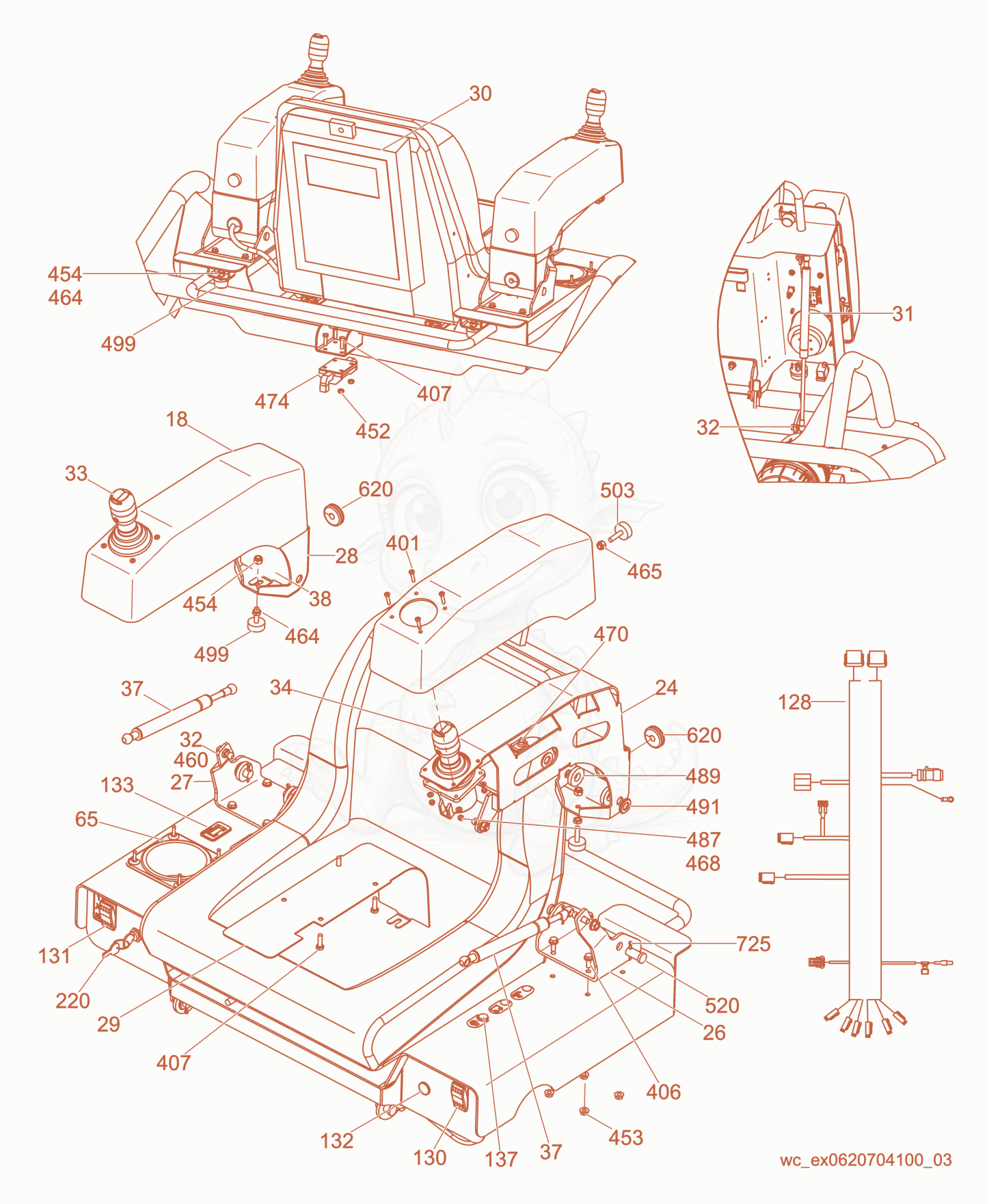

CRT48-35L-PSEU Seat cpl. Diagram
- Seat - Operator, CRT - 5200000227×1
- HOUSING-ARMREST - 5000178821×2
- BRACKET-ARMREST ASSY P-5000112007 - 5000179013×1
- 265000179005Not stockedBracket×1
- BRACKET-CLEVIS,RIGHT P-5000112007 - 5000181477×1
- BRACKET-ARMREST ASSY,RIGHT P-5000112007 - 5000181478×1
- PLATE-ARMREST COVER P-5000112007 - 5000179012×1
- HOLDER-MANUAL - 5000083220×1
- 315000164953Not stockedSpring cylinder×1
- STUD-BALL 10 x M8 - 5000155125×8
- JOYSTICK-DUAL AXIS - 5000165413×1
- BELLOWS-JOYSTICK,CRT PS - 5000188623×2
- JOYSTICK CAP-RUBBER CRT 48 PS - 5100022810×2
- JOYSTICK-SINGLE AXIS - 5000165414×1
- BELLOWS-JOYSTICK,CRT PS - 5000188623×2
- JOYSTICK CAP-RUBBER CRT 48 PS - 5100022810×2
- SPRING-GAS,90 LB - 5000163653×2
- PLATE-ARMREST COVER,RIGHT P-5000112007 - 5000181480×1
- INSERT-CUP HOLDER - 5000116585×1
- WIRING HARNESS-CRT48 PS - 5000178303×1
- 1305000117284Not stockedLight switch×1
- SWITCH-ROCKER,SPST - 5000162739×1
- PLUG-CAP - 5000174673×1
- hour meter - 5000117280×1
- LIGHT-INDICATOR,RED - 5000171192×4
- SWITCH- IGNITION KEY - 5000154745×1
- SCREW-M4X20 SBHCS BLK ZNC - 5000179011×8
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×8
- SCREW M6 X 20 HX.HD. - 5000011470×8
- NUT-LOCK M6 HEX. - 5000010368×4
- NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×8
- NUT-LOCK M8 HEX - 5000010367×4
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
- NUT-M8,JAM - 5000010805×4
- NUT-LOCK M12X1.75 HEX - 5000010366×2
- NUT-LOCK M4 HEX. - 5000010370×8
- NUT-LOCK,M6 CLIP,PHOSPHATE - 5000150959×8
- LATCH-SPRING,TOWER - 5000174971×1
- 4875000010628Not stockedFlat washer×8
- WASHER 13 FLAT - 5000013618×4
- WASHER B13 FLAT - 5000010620×4
- SHOCKMOUNT 30 X 15-55SH,FORM D - 5000088873×4
- SHOCKMOUNT-BUMPER - 5000179010×2
- PIN-CLEVIS 1/2 X 1.0 - 5000173840×4
- 6205000179261Not stockedGrommet×2
- PIN 3.2 X 25 COTTER - 5000010499×4
