CRT46KHO

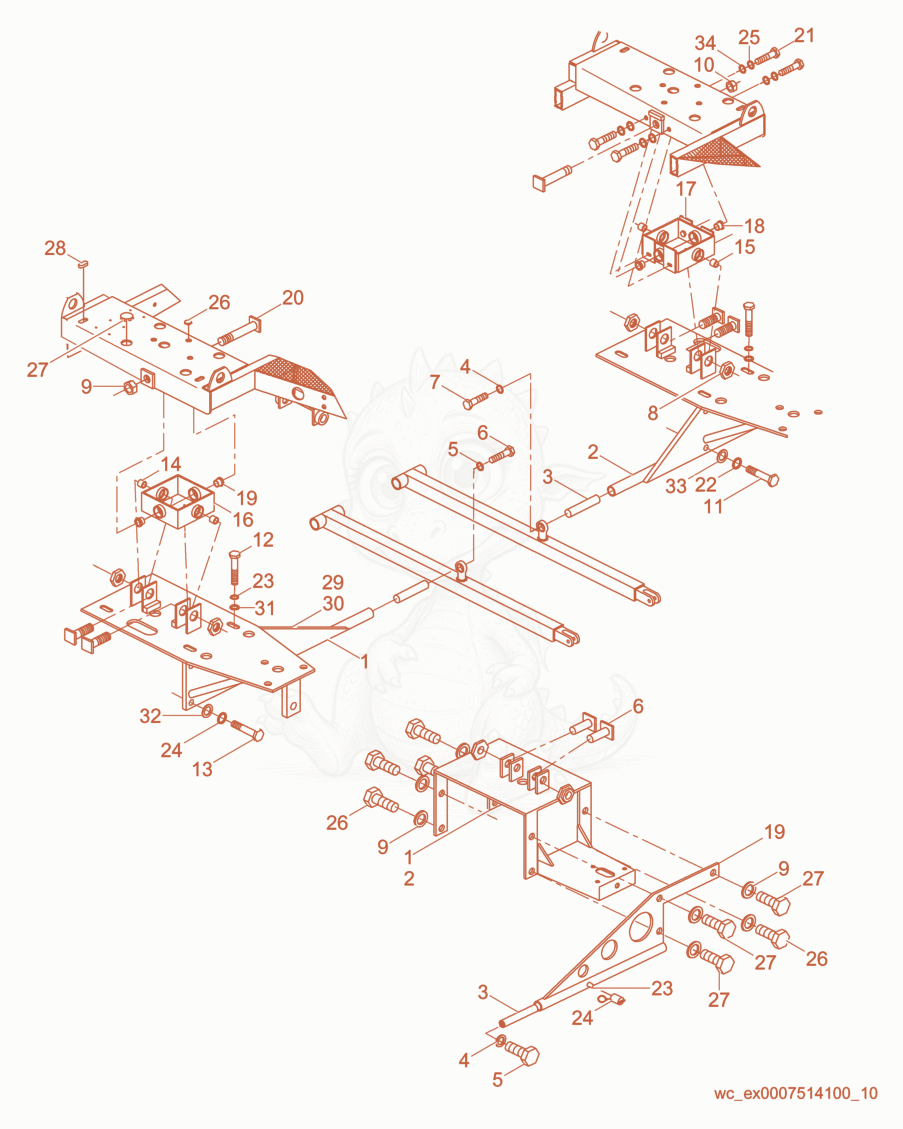

CRT46KHO Crosshead cpl. Diagram

Exploded parts diagram of the Crosshead cpl. of a Wacker Neuson CRT46KHO, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000110607Not stocked
    Bracket×1
  • 25000111392Not stocked
    Crosshead mount×1
  • 35000087991Not stocked
    Insert×2
  • 45000025650Not stocked
    Lock washer×2
  • 55000025562Not stocked
    Hexagonal head cap screw×2
  • 65000087984Not stocked
    Bolt×4
  • 75000088028Not stocked
    Lock nut×6
  • 85000088034Not stocked
    Bolt×16
  • 95000113769Not stocked
    Lock washer×2
  • 105000111393Not stocked
    Bushing×4
  • 115000111394Not stocked
    Crosshead mount box×1
  • 125000111395Not stocked
    Crosshead mount box×1
  • 135000087959Not stocked
    Bushing×4
  • 155000087985Not stocked
    Bolt×2
  • 165000025555Price
    SCREW 3/8-16 X 1-1/4 GR5,HX.HD - 5000025555×4
  • 175000025649Price
    WASHER-LOCK 3/8,MED. - 5000025649×20
  • 185000110608Not stocked
    Bracket×1
  • 195000110609Not stocked
    Bracket×1
  • 205000088031Not stocked
    Plug (threaded)×8
  • 215000088032Not stocked
    Plug (threaded)×10
  • 225000111396Not stocked
    Push-in plug×2
  • 235000087871Not stocked
    Grease fitting×1
  • 245000087906Not stocked
    Cover×1
  • 255000087930Not stocked
    Flat washer×20
  • 265000110611Not stocked
    Screw×10
  • 275000110610Not stocked
    Screw×6
