CRT36-25 RIDE-ON TROWEL

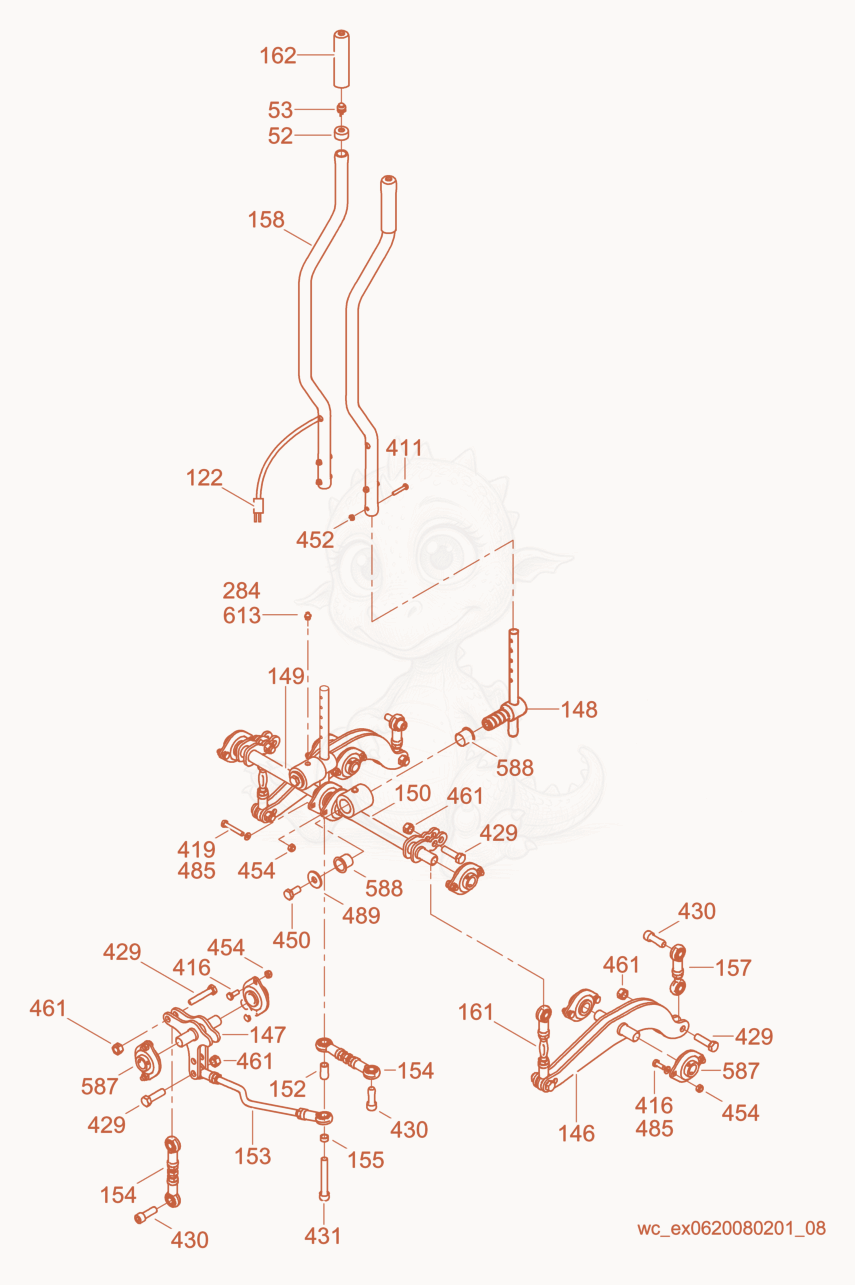

CRT36-25 Mechanical Steering Diagram
- CAP-SWITCH - 5000153562×1
- SWITCH-PUSH BUTTON SP=5100043486 - 5000153537×1
- WIRING HARNESS-CRT - 5000152460×1
- 1465000164919Not stockedSteering bracket×2
- 1475000154335Not stockedBracket×1
- PIVOT-HANDLE MOUNT P-5000176420 - 5000154321×2
- 1495000164843Not stockedLeft hub×1
- 1505000164842Not stockedRight hub×1
- TUBE-SPACER - 5000116913×1
- 1535000163647Not stockedOffset link×1
- LINK-HANDLE PIVOT - 5000163643×2
- SPACER-TUBE - 5000172816×1
- LINK-MECH STEERING - 5000165331×2
- HANDLE-STEERING P-5000176420 - 5000165055×2
- LINK-L/R PIVOT - 5000163645×2
- HANDLE-GRIP,CRT - 5000152457×2
- CAP-GREASE FITTING,RED - 5000155804×2
- SCREW M6 X 35 HX.HD. - 5000011368×4
- SCREW M8 X 20 HX.HD. - 5000012362×16
- 4195000011344Not stockedHexagonal head cap screw×2
- SCREW 1/2-20 X 1.75 ,HEX HEAD - 5000165522×8
- SCREW 1/2 -20 X 1-1/2 ,SOC.HD. - 5000154318×4
- SCREW 1/2-20X3-1/2 ,SOC HD - 5000161203×1
- SCREW M12 X 25 HX.HD. - 5000013002×2
- NUT-LOCK M6 HEX. - 5000010368×4
- NUT-LOCK M8 HEX - 5000010367×18
- NUT-LOCK 1/2-20,HEX(W/NYLON) - 5000117632×8
- WASHER-FLAT,M8,ZINC - 5000010622×18
- WASHER A13 FLAT - 5000010376×2
- BEARING .875 ID,FLANGE UNIT - 5000118695×10
- BEARING-FLANGE 1 ID - 5000116765×4
- FITTING-GREASE AM10 - 5000036607×2
