CRT36-23K-H RIDE-ON TROWEL

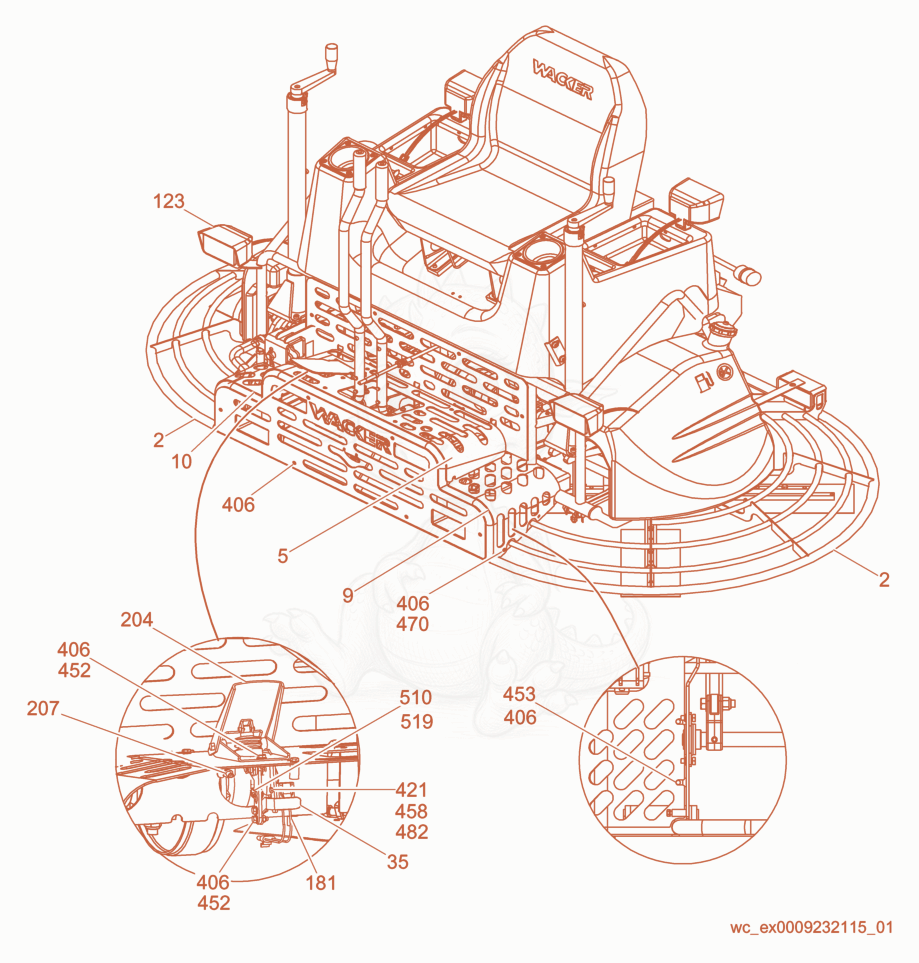

CRT36-23K-H Machine cpl./Front View/Lights/Guards Diagram

Exploded parts diagram of the Machine cpl./Front View/Lights/Guards of a Wacker Neuson CRT36-23K-H, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000119003Not stocked
    Frame cpl.×1
  • 55000119267Not stocked
    Plate×1
  • 95000119026Not stocked
    Plate×1
  • 105000119043Not stocked
    Plate×1
  • 355000154816Not stocked
    Bracket×1
  • 1235000116748Not stocked
    Light×2
  • 1815000117384Price
    SWITCH-THROTTLE SENSE - 5000117384×1
  • 2045000151691Not stocked
    Throttle control×1
  • 2075000152767Not stocked
    Throttle cable×1
  • 4065000028949Price
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×30
  • 4215000011476Price
    SCREW M5 X 16 HX.HD. - 5000011476×2
  • 4525000010368Price
    NUT-LOCK M6 HEX. - 5000010368×5
  • 4535000029117Price
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×4
  • 4585000010369Price
    NUT-LOCK M5 HEX. - 5000010369×2
  • 4705000088190Price
    NUT M6 CLIP ZINC PLATED - 5000088190×7
  • 4825000010625Price
    WASHER B5.3 FLAT - 5000010625×2
  • 5105000116784Price
    PIN-CLEVIS 1/4 X 1/2 - 5000116784×1
  • 5195000075161Price
    PIN 1-3/16 LONG .073DIA,COTTER - 5000075161×1
