BV50A-P BACKPACK (SPM3+PH45)

BV50A-P Muffler Diagram

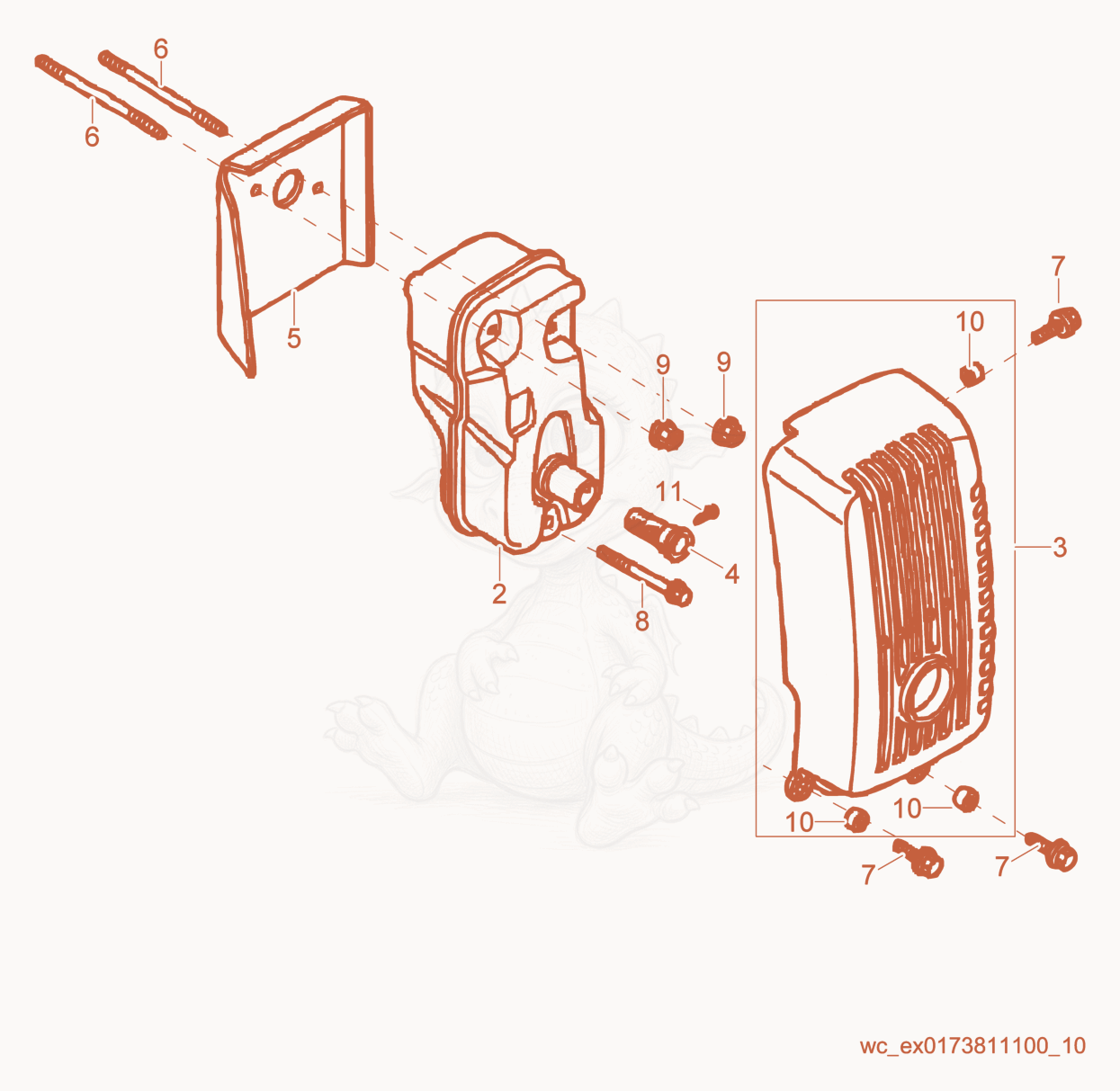

Exploded parts diagram of the Muffler of a Wacker Neuson BV50A-P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000217203Price
    Muffler - 5000217203×1
  • 35000217204Not stocked
    Protector×1
  • 45000217206Price
    ARRESTOR-SPARK - 5000217206×1
  • 55000217209Price
    GUIDE-AIR - 5000217209×1
  • 65000217243Price
    BOLT-STUD 5 X 55 - 5000217243×2
  • 75000217251Price
    BOLT-FLANGE 5 X 16 - 5000217251×3
  • 85000217263Price
    BOLT-FLANGE 5 X 35 - 5000217263×1
  • 95000217264Not stocked
    Lock nut×2
  • 105000157537Price
    BUSHING-COVER - 5000157537×3
  • 115000217280Price
    SCREW-TAPPING 4 X 8 - 5000217280×1
