BV35A-P BACKPAK (SPM3+PH45),EU

BV35A-PEU Harness cpl. Diagram

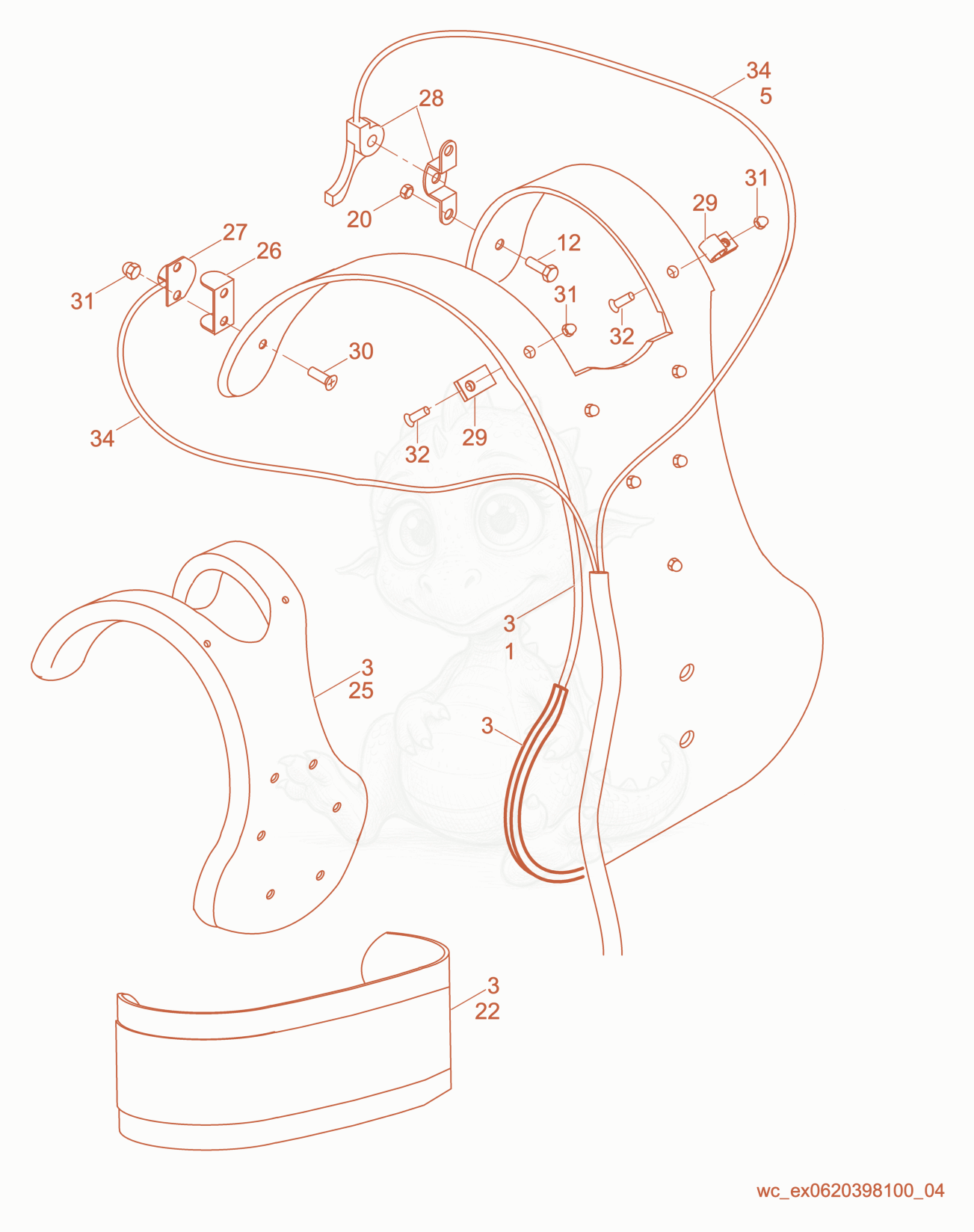

Exploded parts diagram of the Harness cpl. of a Wacker Neuson BV35A-PEU, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000174781Not stocked
    Shoulder harness base×1
  • 35000174772Not stocked
    Tote w/trim & snaps×1
  • 55000174877Price
    Throttle Cable & Casing - 5000174877×1
  • 125000157752Not stocked
    Screw×2
  • 205000174808Price
    NUT-NYLOCK M6 - 5000174808×2
  • 225000174783Price
    BELT-SUPPORT - 5000174783×1
  • 255000174782Not stocked
    Pad×1
  • 265000174884Price
    BRACKET-SWITCH - 5000174884×1
  • 275000157761Not stocked
    Switch×1
  • 285000174875Price
    LEVER-THROTTLE - 5000174875×1
  • 295000174788Not stocked
    Clamp×4
  • 305000174839Price
    SCREW M4 X 18 - 5000174839×2
  • 315000174829Price
    NUT-ACORN,M4 - 5000174829×8
  • 325000174828Price
    BOLT M4 X 12 - 5000174828×4
  • 345000174774Not stocked
    Throttle cable/engine kill×1
