BT48A

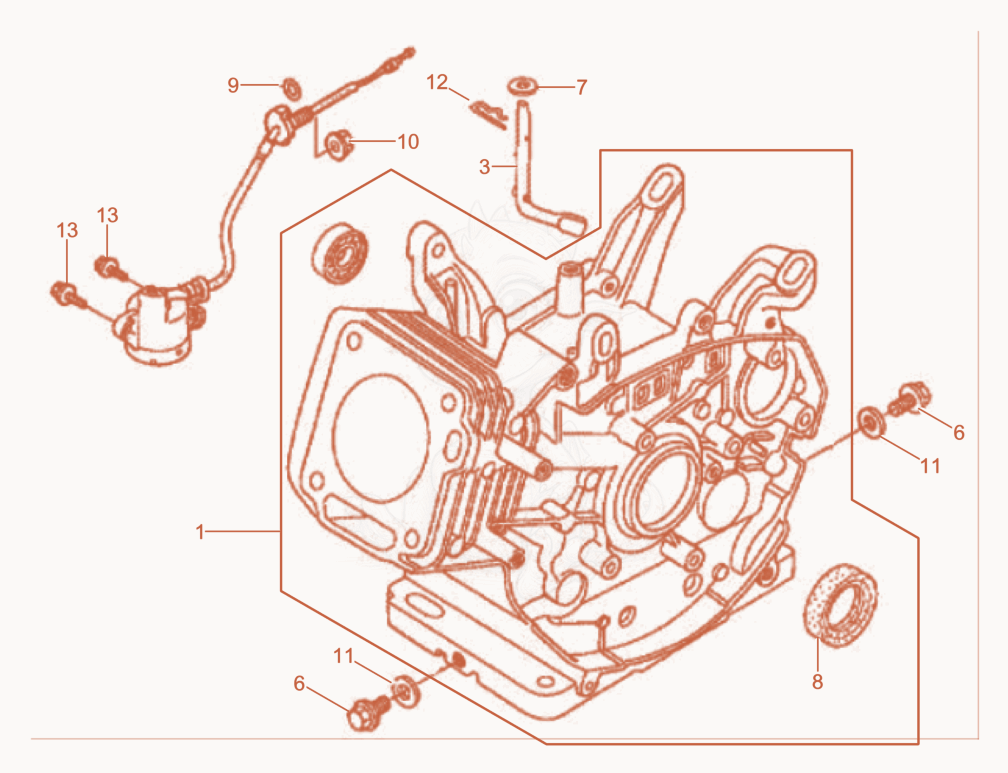

BT48A Cylinder housing Diagram

Exploded parts diagram of the Cylinder housing of a Wacker Neuson BT48A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100000351Price
    Cylinder housing cpl. - 5100000351×1
  • 35000074641Price
    Shaft - 5000074641×1
  • 65100038225Price
    Drain screw - 5100038225×2
  • 75000074656Price
    Washer - 5000074656×1
  • 85000217495Price
    SEAL-ROTARY SHAFT 25 X 41 X 6 - 5000217495×1
  • 95100051238Not stocked
    O-Ring×1
  • 105000072332Not stocked
    Flange nut×1
  • 115000053994Price
    SEAL-RING 12MM - 5000053994×2
  • 125000110110Price
    PIN-COTTER 10MM - 5000110110×1
  • 135100003498Not stocked
    Flange screw×2
  • 165000217492Price
    Switch oil safety - 5000217492×1
