BS70-2plus 11in US

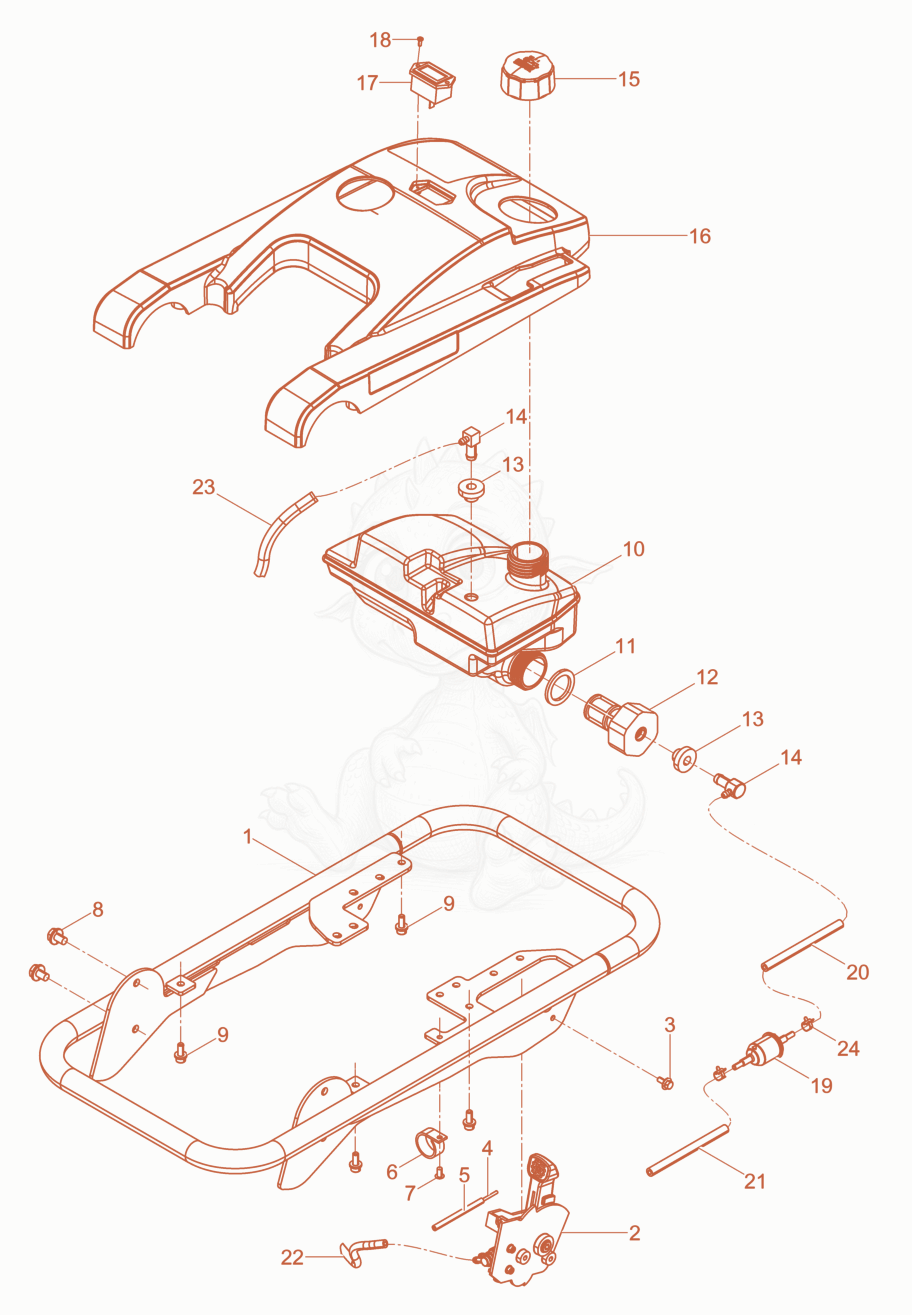

BS70-2PLUS11INUS Guiding Frame cpl. Diagram

Exploded parts diagram of the Guiding Frame cpl. of a Wacker Neuson BS70-2PLUS11INUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100028600Price
    Guide Handle - 5100028600×1
  • 25100030465Price
    Throttle Control cpl. - 5100030465×1
  • 35000155845Price
    SCREW M5X12 HX HD,BLK MED LOC - 5000155845×2
  • 45100032225Price
    Bowden cable - 5100032225×1
  • 55100032226Price
    outer bowden cable - 5100032226×1
  • 65000155562Price
    CLIP-WIRE HARNESS,BLACK - 5000155562×1
  • 75100035983Price
    Blind rivet 5x10 - 5100035983×1
  • 85100027071Price
    Screw M8x14 HHCS,10.9,SEM,w/PC80 Patch - 5100027071×4
  • 95000160861Price
    SCREW M6X16 SC HD,W/WASHER,SEM - 5000160861×8
  • 105100030302Price
    Fuel Tank - 5100030302×1
  • 115000086312Price
    SEAL-RING - 5000086312×1
  • 125100028935Price
    water filter - 5100028935×1
  • 135100032258Price
    Bush - 5100032258×2
  • 145100066546Price
    Connecting nipple - 5100066546×2
  • 155100030407Price
    tank cap 2i/4As - 5100030407×1
  • 165100031423Price
    Cover 2plus - 5100031423×1
  • 175100034578Price
    working hour meter 2-Takt - 5100034578×1
  • 185000209453Price
    Screw - 5000209453×2
  • 195100068032Not stocked
    Fuel filter×1
  • 205100037400Price
    Fuel hose EPA - 5100037400×1
  • 215100019507Price
    Hose-Fuel w/spring,LP1300,120.6mm - 5100019507×1
  • 225100037402Price
    Fuel hose EPA - 5100037402×1
  • 235100037403Price
    Fuel hose EPA - 5100037403×1
  • 245000171698Price
    CLAMP 3/8 DIA.,BLACK - 5000171698×2
