BS70-2i RAMMER,13 PL SHO

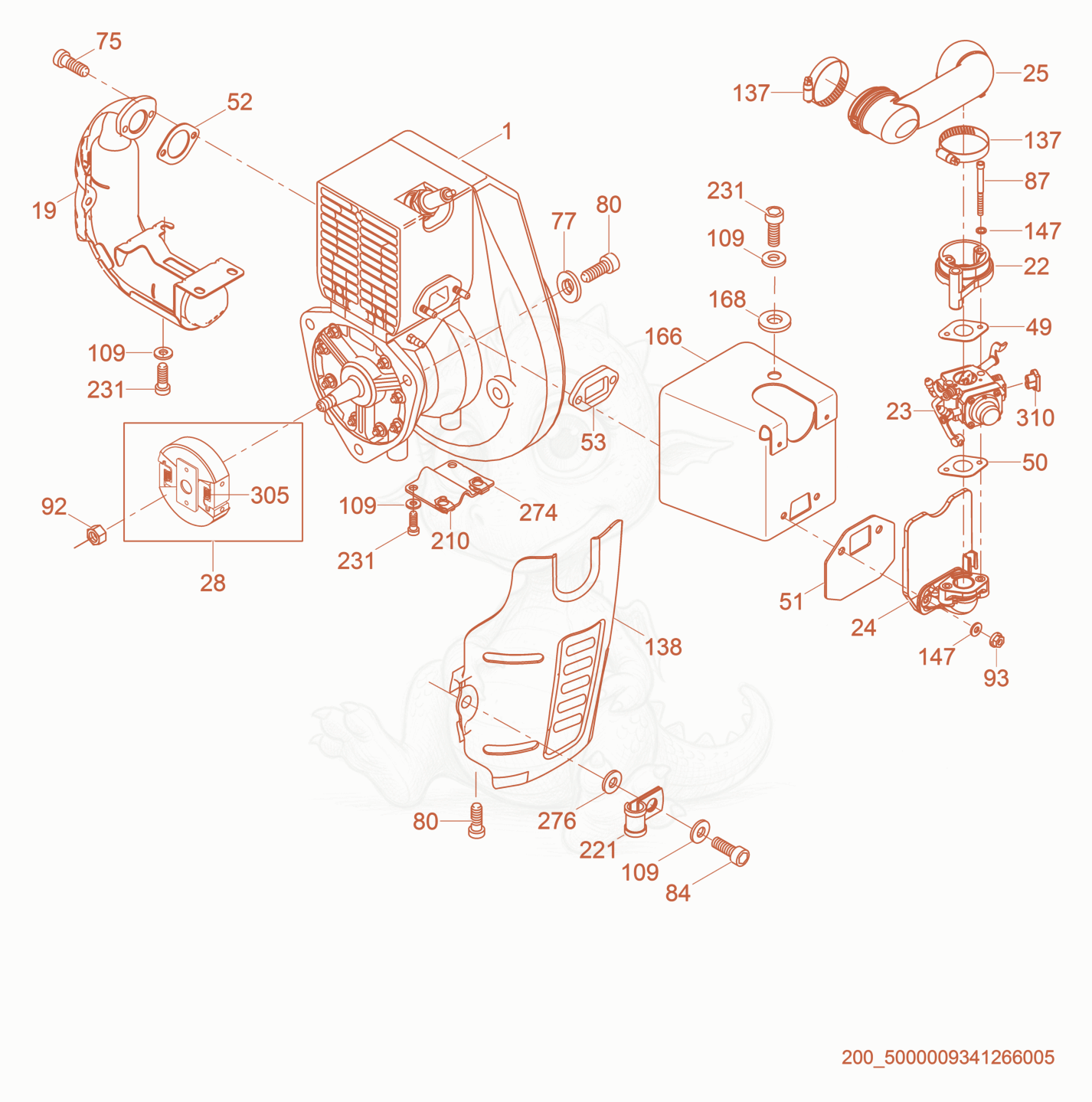

BS70-2I Engine cpl. Diagram
- 15000182676Not stockedEngine-WM 80-oi×1
- 195000180082Not stockedMuffler×1
- ADAPTOR-AIRTUBE - 5000180920×1
- 235000183844Not stockedWalbro carburetor×1
- 245000180100Not stockedCarburetor adapter×1
- TUBE-AIR,2 CYCLE - 5000180096×1
- CLUTCH-CENTRIFUGAL,80mm X-5100032207 - 5000157205×1
- 495000084669Not stockedGasket×1
- 505000183153Not stockedGasket×1
- GASKET-CARB ADAPTER - 5200001772×1
- 525000175329Not stockedGasket×1
- 535000114575Not stockedGasket×1
- SCREW M6X20 12.9,BLOX - 5000112202×2
- WASHER 8.4,FLAT,200HV - 5000172326×3
- SCREW M8 X 25 SOC.HD. - 5000011542×5
- SCREW M8 X 20 SOC.HD. - 5000011543×1
- SCREW M5 X 65,SHCS - 5000181790×2
- NUT M10 8,HEX - 5000010883×1
- 935000047488Not stockedHexagon nut×2
- WASHER-LOCK B8 - 5000033198×6
- CLAMP,32/50 - 5000078844×2
- 1385000181846Not stockedGuard×1
- WASHER-LOCK,5 - 5000103211×4
- Heatshield - 5000173863×1
- WASHER-STEEL,FLAT - 5001005118×1
- NUT-LOCK,M8 CLIP - 5000110969×2
- CLAMP-P,.375 DIA,INSULATED - 5000181487×1
- SCREW M8 X 20 SOC.HD. - 5000011543×4
- 2745000175330Not stockedMuffler bracket×1
- WASHER-B8.4 FLAT,2THK,20 OD - 5000160298×1
- Spring - 5000172983×2
- 3105200007836Not stockedPlug×1
