BS60-2plus 11in

BS60-2PLUS11IN Carburetor cpl. Diagram

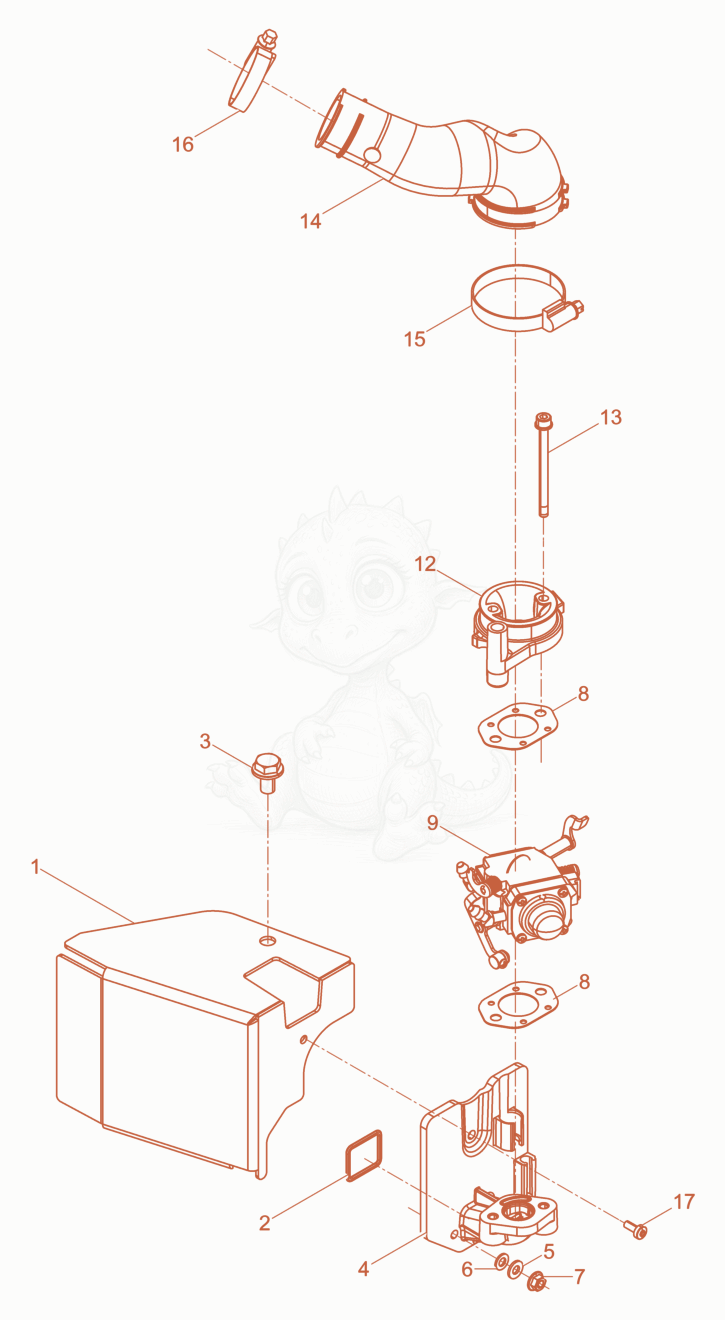

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson BS60-2PLUS11IN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100059332Price
    Air duct plate - 5100059332×1
  • 25100002961Price
    O-ring 26x2 - 5100002961×1
  • 35100027072Not stocked
    Screw×1
  • 45100048930Price
    carburetor flange - 5100048930×1
  • 55000103212Price
    Washer - 5000103212×2
  • 65000103211Price
    WASHER-LOCK,5 - 5000103211×2
  • 75000047488Not stocked
    Hexagon nut×2
  • 85000095774Price
    GASKET-CARBURETOR - 5000095774×2
  • 95100061745Price
    Carburetor Walbro - 5100061745×1
  • 125100032275Price
    Adaptor - 5100032275×1
  • 135100075649Not stocked
    Screw M 5x 65×2
  • 145100032179Price
    tube-air - 5100032179×1
  • 155000078844Price
    CLAMP,32/50 - 5000078844×1
  • 165100033186Price
    Clamp - 5100033186×1
  • 175000222072Price
    Screw - 5000222072×1
