BS 50-4As 280 mm shoe

BS50-4AS Guide Cylinder cpl. Diagram

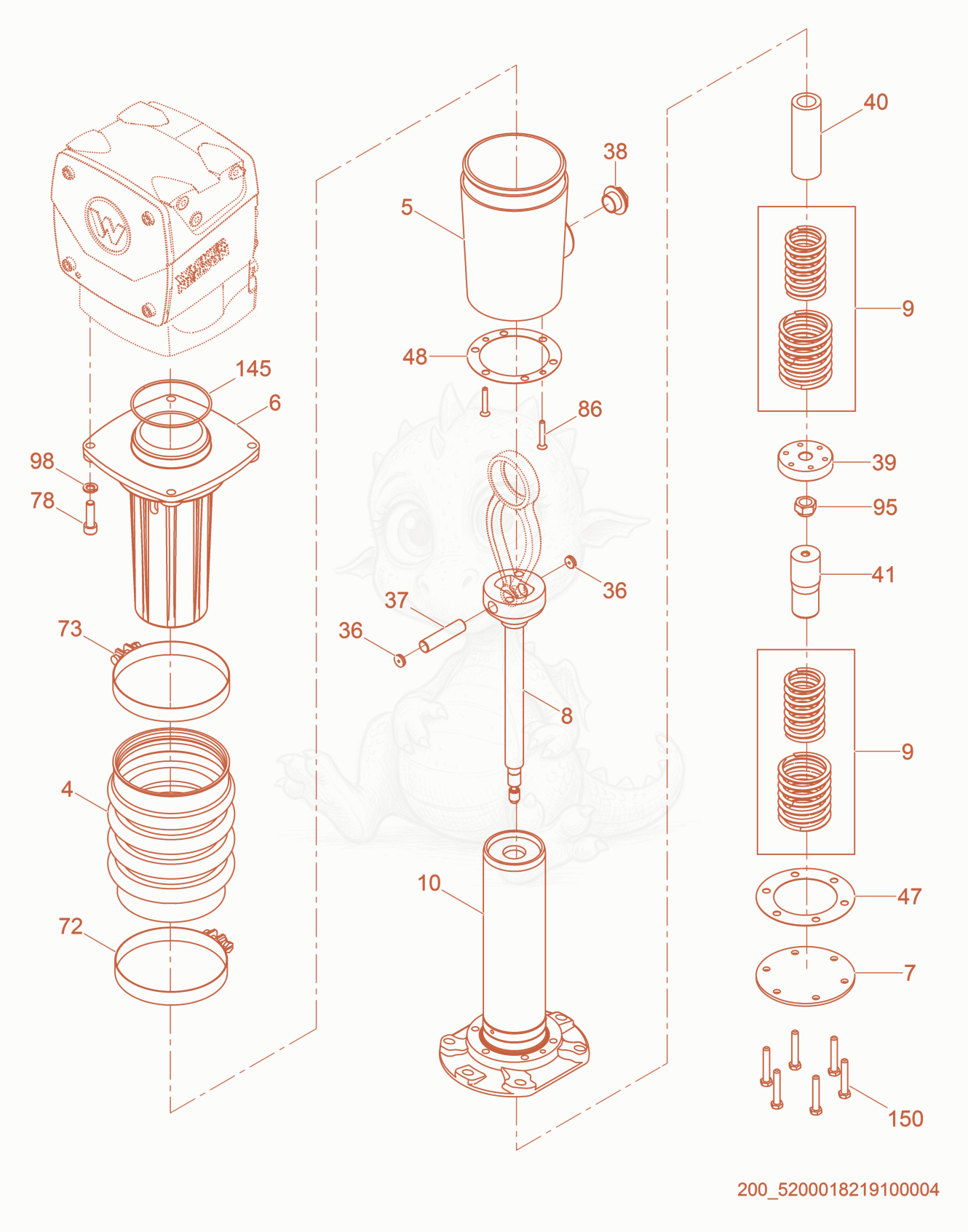

Exploded parts diagram of the Guide Cylinder cpl. of a Wacker Neuson BS50-4AS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000177355Not stocked
    Bellows×1
  • 55000039800Not stocked
    Protective pipe×1
  • 65000183746Not stocked
    Guide cylinder×1
  • 75000114844Not stocked
    Spring cover×1
  • 85000110350Not stocked
    Ram×1
  • 95000113843Not stocked
    Spring Set×2
  • 105000114080Not stocked
    Spring cylinder×1
  • 345000011050Price
    PLUG M16 X 1.5 - 5000011050×1
  • 365000089790Not stocked
    Push-in plug×2
  • 375000039785Not stocked
    Piston pin×1
  • 385000013971Not stocked
    Sight Glass×1
  • 395000039795Not stocked
    Piston guide×1
  • 405000034442Price
    BUSHING-IMPACT,PLASTIC - 5000034442×1
  • 415000034601Not stocked
    Bushing×1
  • 475000117838Not stocked
    Gasket×1
  • 485000043204Not stocked
    Gasket×1
  • 615000012082Price
    SEAL-RING 16 X 20 - 5000012082×1
  • 735000165078Price
    CLAMP-HOSE,TOGGLE SS,181MM, DIA - 5000165078×2
  • 785000011533Price
    SCREW M10 X 35 SOC.HD. - 5000011533×4
  • 845000011543Price
    SCREW M8 X 20 SOC.HD. - 5000011543×14
  • 955000083814Not stocked
    Locknut×1
  • 985000010644Price
    WASHER-LOCK B10 - 5000010644×4
  • 1015000012397Price
    WASHER-LOCK B8 - 5000012397×7
  • 1455000031880Price
    O-RING 96 X 3-70 Sh - 5000031880×1
