BS50-2plus 11in

BS50-2PLUS11IN Air Filter cpl. Diagram

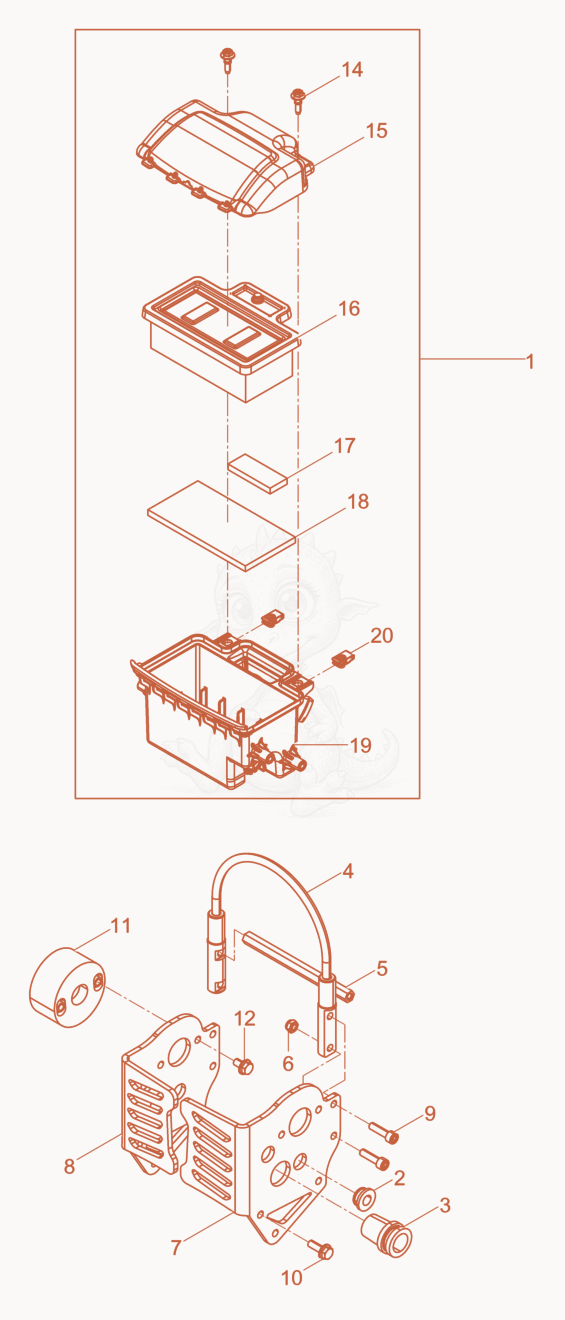

Exploded parts diagram of the Air Filter cpl. of a Wacker Neuson BS50-2PLUS11IN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100032027Price
    Air Cleaner - 5100032027×1
  • 25100032029Price
    Grommet - 5100032029×4
  • 35100032050Price
    Grommet - 5100032050×1
  • 45100057480Price
    Lifting point - 5100057480×1
  • 55100032052Price
    Brace-Shockmount Bracket - 5100032052×1
  • 65000010367Price
    NUT-LOCK M8 HEX - 5000010367×2
  • 75100028527Price
    Side plate left - 5100028527×1
  • 85100028528Price
    Side plate right - 5100028528×1
  • 95200023260Not stocked
    Screw×4
  • 105200001667Price
    SCREW M8X25 HHCS W/201,SEM - 5200001667×6
  • 115100032053Price
    Shockmount - 5100032053×2
  • 125100027072Not stocked
    Screw×4
  • 145000164398Price
    SCREW-FILTER,AIR BOX - 5000164398×2
  • 155200007043Price
    COVER-FILTER,AIR BOX ASSEMBLY - 5200007043×1
  • 165200003062Price
    Filter-Air,Element - 5200003062×1
  • 175200007044Price
    ELEMENT-PREFILTER - 5200007044×1
  • 185200007045Price
    FOAM-FILTER - 5200007045×1
  • 195200007040Price
    BASE-FILTER,AIR BOX ASSEMBLY - 5200007040×1
  • 205000164397Price
    CLIP-FILTER,AIR BOX - 5000164397×2
