Vibratory plate BPU 4045A

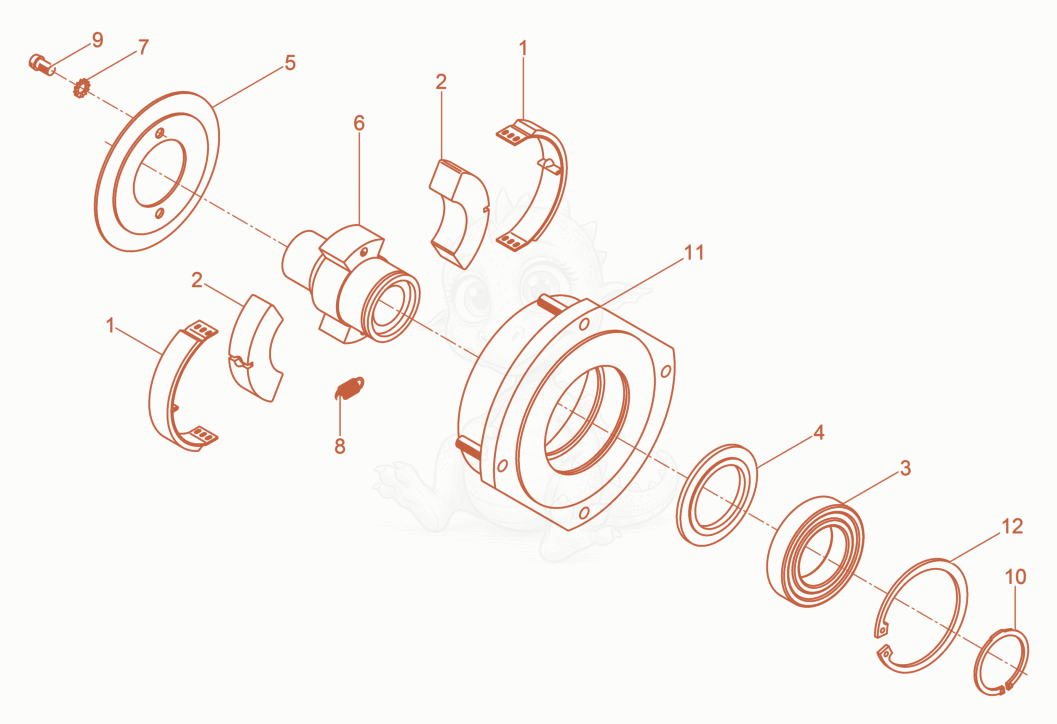

BPU4045A Centrifugal Clutch cpl. Diagram

Exploded parts diagram of the Centrifugal Clutch cpl. of a Wacker Neuson BPU4045A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000048944Price
    SHOE-CENTRIFUGAL CLUTCH - 5000048944×2
  • 25000125878Price
    ECCENTRIC-WEIGHT - 5000125878×2
  • 35000201720Not stocked
    Ball bearing×1
  • 45000201907Price
    WASHER-DISTANCE - 5000201907×1
  • 55000125881Price
    COVER-DISC - 5000125881×1
  • 65000201906Price
    hub - 5000201906×1
  • 75000201719Not stocked
    Lock washer×2
  • 85000125882Price
    SPRING - 5000125882×2
  • 95000201718Not stocked
    Cheese head screw×2
  • 105000201717Not stocked
    Retaining ring×1
  • 115000201908Price
    clutch drum - 5000201908×1
  • 125000201715Price
    RET-RING,J68 X 2,5 - 5000201715×1
