BPU3545A-VIBROPLATE

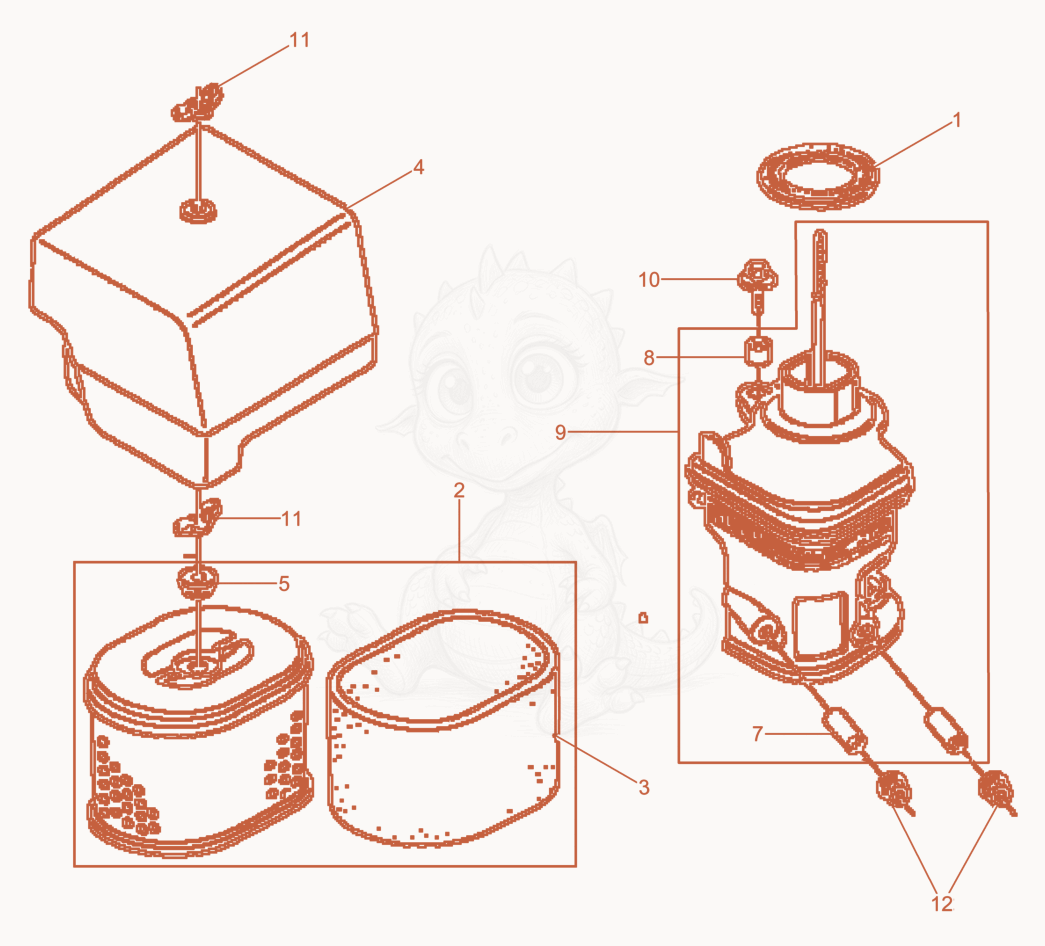

BPU3545AUS Air Cleaner Diagram

Exploded parts diagram of the Air Cleaner of a Wacker Neuson BPU3545AUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000074744Price
    GASKET-AIR CLEANER MOUNT - 5000074744×1
  • 25000217486Price
    airfilter insert - 5000217486×1
  • 35000217487Not stocked
    Air filter insert×1
  • 45000081670Price
    COVER-AIR CLEANER - 5000081670×1
  • 55000072343Price
    GROMMET .240 ID,METALCLAD - 5000072343×1
  • 75000076372Price
    RING-COLLAR - 5000076372×2
  • 85000071035Price
    Sleeve - 5000071035×1
  • 95000076371Price
    MOUNT-AIR CLEANER ELBOW - 5000076371×1
  • 105000217494Price
    SCREW W/WASHER M6 X 22 - 5000217494×1
  • 115000071621Price
    NUT-WING M6 - 5000071621×2
  • 125000071056Price
    NUT M6,HEX,FLANGE - 5000071056×2
