Vibration Plate BPU 2950A WSM

BPU2950A Air Filter Insert cpl. Diagram

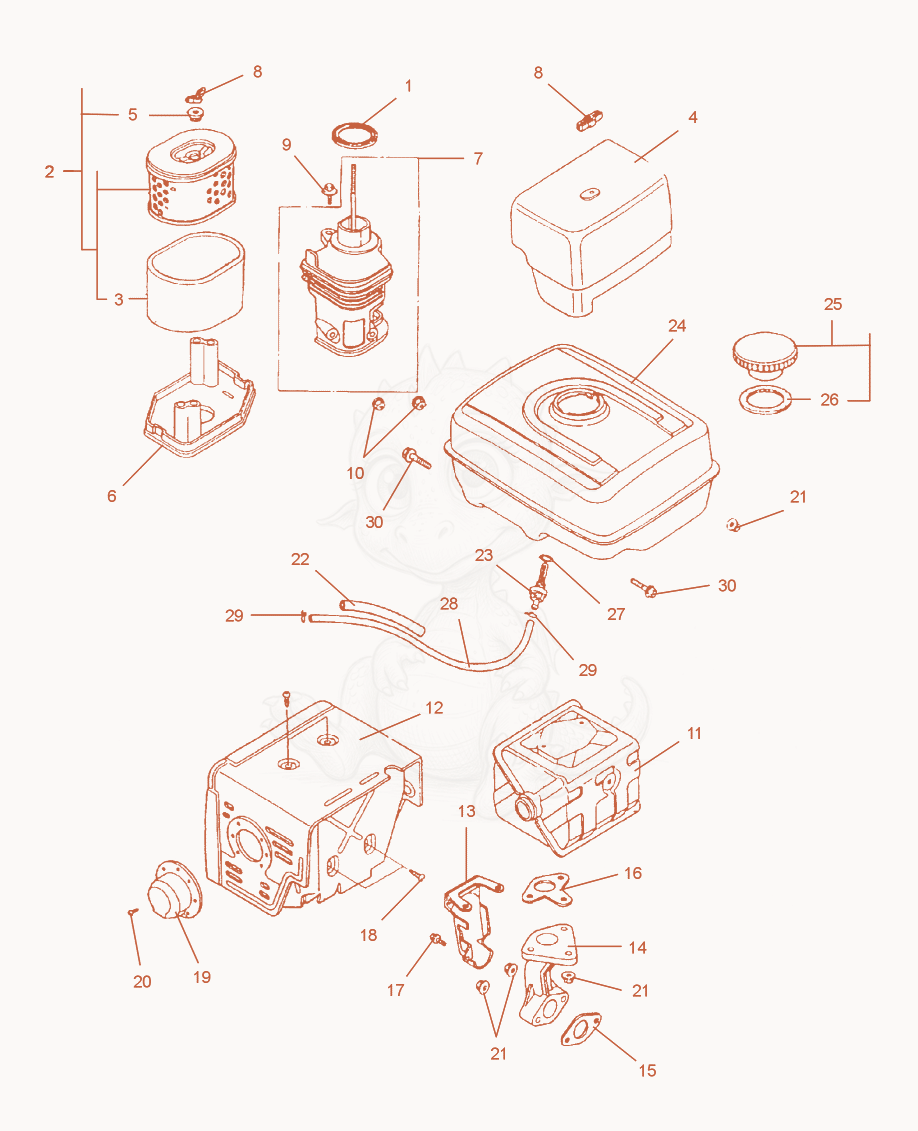

Exploded parts diagram of the Air Filter Insert cpl. of a Wacker Neuson BPU2950A, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000074744Price
GASKET-AIR CLEANER MOUNT - 5000074744×1
25000074737Not stocked
Air Filter Insert cpl.×1
35000076373Price
ELEMENT-AIR FILTER PRECLEANER - 5000076373×1
45000081670Price
COVER-AIR CLEANER - 5000081670×1
55000072343Price
GROMMET .240 ID,METALCLAD - 5000072343×1
65000068965Price
SUPPORT-FILTER HOLDER - 5000068965×1
75000076371Price
MOUNT-AIR CLEANER ELBOW - 5000076371×1
85000071621Price
NUT-WING M6 - 5000071621×2
95000071036Price
SCREW M6 X 20 W/FW,HEX.FLANGED - 5000071036×1
105000071056Price
NUT M6,HEX,FLANGE - 5000071056×2
115000081636Price
MUFFLER - 5000081636×1
125000081637Price
GUARD-MUFFLER - 5000081637×1
135000115592Price
GUARD-EXHAUST PIPE - 5000115592×1
145000081639Price
PIPE-EXHAUST - 5000081639×1
155000110252Price
GASKET-MUFFLER,STL - 5000110252×1
165000074742Price
GASKET-MUFFLER - 5000074742×1
175000053990Price
SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
185000071070Price
SCREW M5 X 8,TAPPING - 5000071070×4
195000074745Price
CAP-EXHAUST DEFLECTOR - 5000074745×1
205000150916Price
SCREW-TAPPING 4 X 6 - 5000150916×3
215000074738Price
NUT M8,HEX.FLANGE - 5000074738×5
225000081764Price
hose cover - 5000081764×1
235000071083Price
FILTER-FUEL,INTANK - 5000071083×1
245000076369Price
TANK-FUEL - 5000076369×1
255000081662Price
CAP-FUEL TANK - 5000081662×1
265000106947Not stocked
Seal×1
275000071082Price
O-RING 14 X 1.3 - 5000071082×1
285000074750Not stocked
Fuel hose×1
295000054136Price
CLAMP B8,HOSE CLIP - 5000054136×2
305000074751Price
SCREW M8 X 25,HEX.FLANGED - 5000074751×2
