BPU2540 REVERSIBLE VIBROPLATE

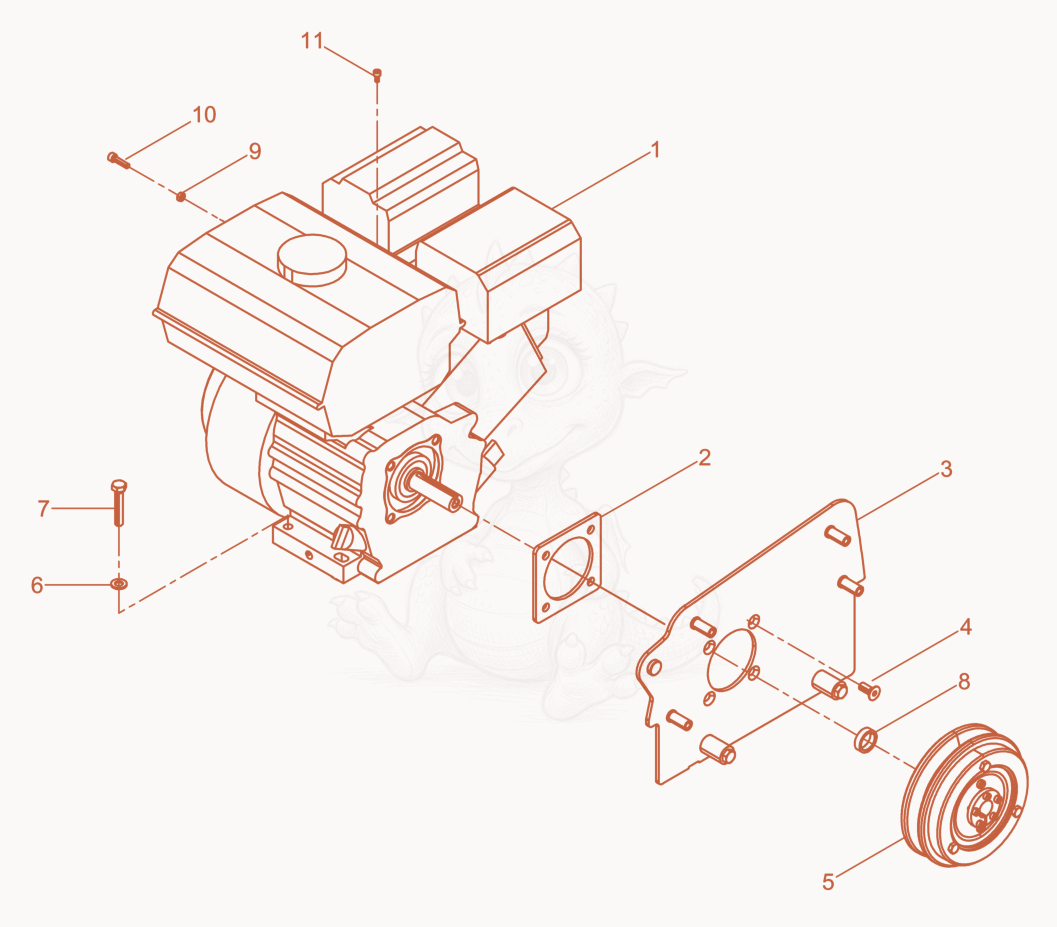

BPU2540 Engine complete Diagram

Exploded parts diagram of the Engine complete of a Wacker Neuson BPU2540, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000202847Not stocked
    Gas Engine WM170×1
  • 25000126577Price
    PLATE-BPU2540 - 5000126577×1
  • 35000220175Price
    Fixing Plate Cpl - 5000220175×1
  • 45000125350Price
    SCREW-FLAT HD,BPU2540 - 5000125350×4
  • 55000210188Price
    CLUTCH-CENTRIFUGAL,BPU2540/50/60 - 5000210188×1
  • 65000010622Price
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 75000011453Price
    SCREW M8 X 45 HX.HD. - 5000011453×4
  • 85000125345Price
    RING-BPU2540 - 5000125345×1
  • 95000010880Price
    NUT M6 8,HEX - 5000010880×1
  • 105000011550Price
    SCREW M6 X 25 SOC.HD. - 5000011550×1
  • 115000011573Price
    SCREW M4 X 8 SOC.HD. - 5000011573×1
