BPS1135A-VIBROPLATE

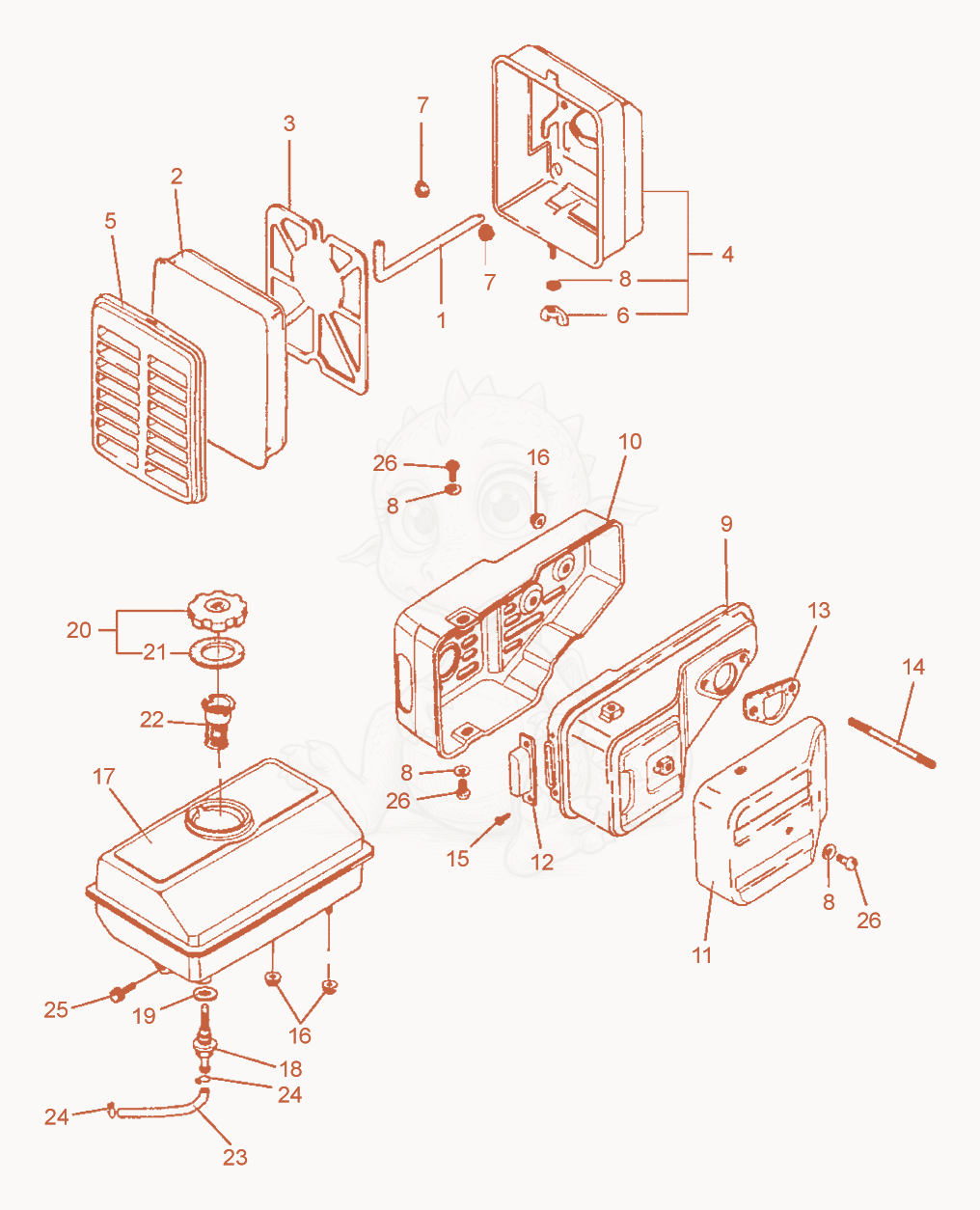

BPS1135A Filter Housing-Fuel Tank-Exhaust Diagram
- 15000071196Not stockedHose×1
- ELEMENT-AIR FILTER - 5000077194×1
- 35000077195Not stockedFilter grid×1
- HOUSING-AIR CLEANER CASE - 5000078559×1
- 55000078560Not stockedFilter cover×1
- NUT-WING M6 - 5000071621×1
- 75000107153Not stockedNut×2
- WASHER B6.4 FLAT - 5000010624×4
- 95000097681Not stockedExhaust×1
- 105000097682Not stockedContact safety device×1
- 115000077180Not stockedDeflector×1
- 125000077181Not stockedExhaust manifold×1
- 135000107154Not stockedSeal×1
- 145000078558Not stockedStud bolt×2
- SCREW B4.2 X 9.5 XREC - 5000013620×2
- NUT M6,HEX,FLANGE - 5000071056×4
- 175000107155Not stockedFuel tank×1
- FILTER-FUEL,INTANK - 5000071083×1
- O-RING 14 X 1.3 - 5000071082×1
- CAP-FUEL TANK - 5000081662×1
- 215000107156Not stockedSeal×1
- FILTER-FUEL - 5000081635×1
- 235000077333Not stockedFuel pipe×1
- CLAMP B8,HOSE CLIP - 5000054136×2
- 255000107158Not stockedScrew×1
- 265000077175Not stockedScrew×3
