AS30e

AS30E Free-floating frame cpl. Diagram

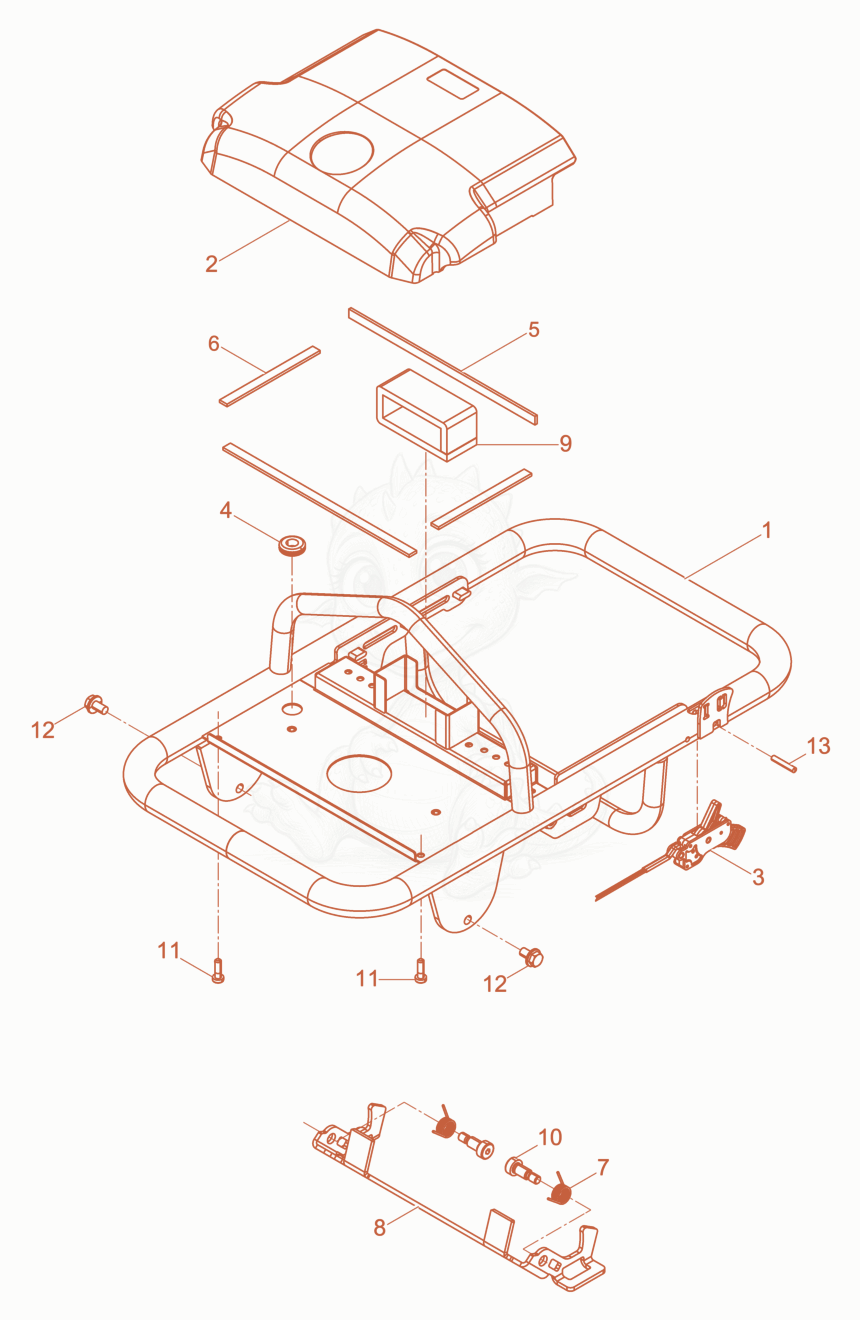

Exploded parts diagram of the Free-floating frame cpl. of a Wacker Neuson AS30E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100027127Not stocked
    Free-floating frame×1
  • 25100001723Price
    Protective Hood cpl. - 5100001723×1
  • 35100002571Price
    Switch - 5100002571×1
  • 45100002839Price
    Cable passage - 5100002839×1
  • 55100002886Price
    sealing tape long - 5100002886×2
  • 65100002888Not stocked
    sealing tape short×2
  • 75100025600Price
    Leg spring - 5100025600×2
  • 85100025574Price
    Locking plate - 5100025574×1
  • 95100002878Price
    Foam - 5100002878×1
  • 105100005556Price
    Shim screw 10x16 - 5100005556×2
  • 115000222605Price
    SCREW-PAN HD. - 5000222605×6
  • 125100027072Not stocked
    Screw×4
  • 135100009734Price
    Grooved pin 5x30 - 5100009734×2
