VP1340R-VIBROPLATE

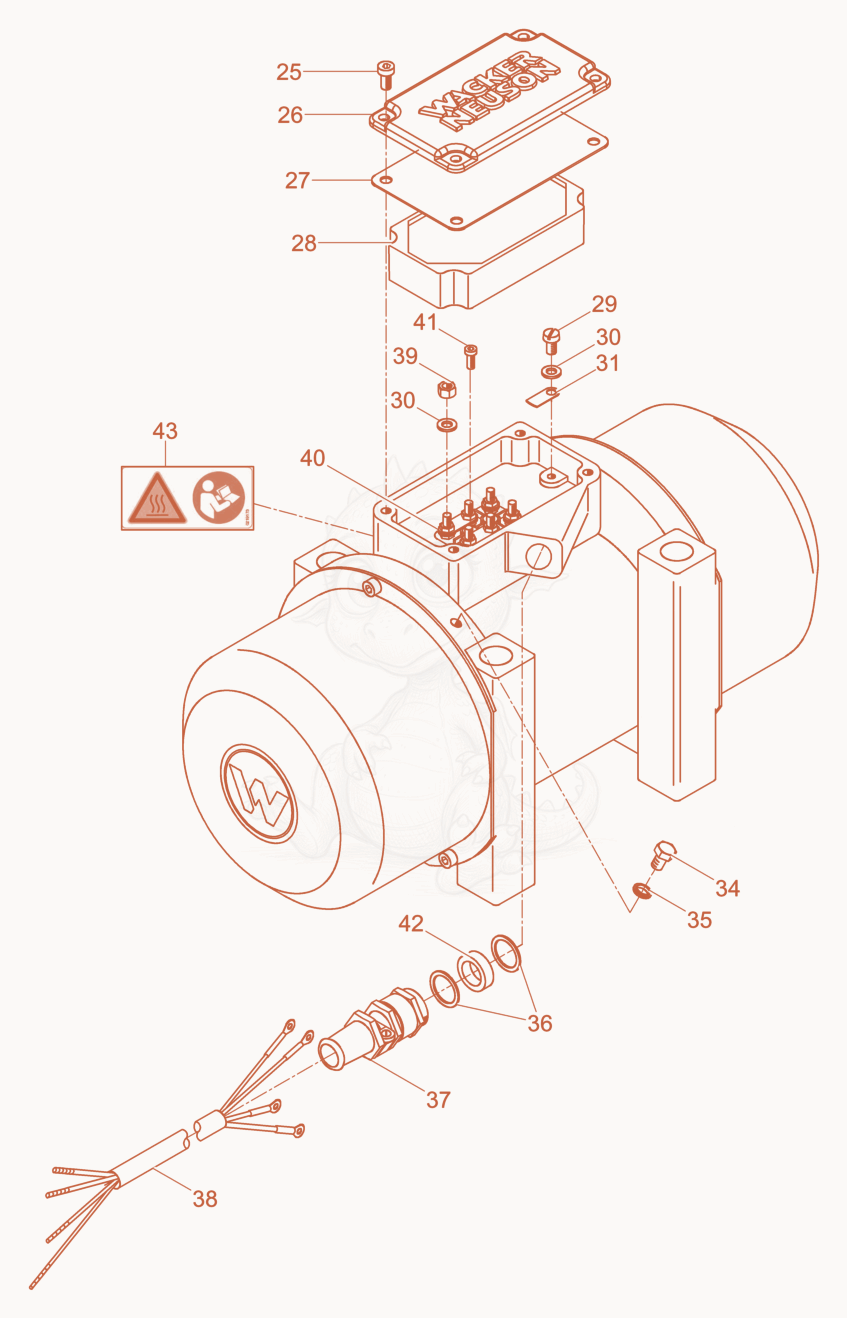

AR54/3/500 External Vibrator cpl. Diagram

Exploded parts diagram of the External Vibrator cpl. of a Wacker Neuson AR54/3/500, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 255000095509Price
    SCREW M5 X 12 SOC.HD. - 5000095509×4
  • 265000067945Price
    Cover - 5000067945×1
  • 275000068755Price
    Seal - 5000068755×1
  • 285000069291Price
    MOUNT-RUBBER - 5000069291×1
  • 295000013175Not stocked
    Cheese head screw×1
  • 305000012643Price
    WASHER B5.3 MS,FLAT - 5000012643×7
  • 315002003378Price
    LABEL-GROUND SYMBOL - 5002003378×1
  • 345000013550Price
    SCREW M6 X 8 HX.HD. - 5000013550×2
  • 355000021670Price
    SEAL-RING 6.7 X 10 X 1 - 5000021670×2
  • 365002000058Price
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 375000038054Price
    SCREW-CONNECTION - 5000038054×1
  • 385000094675Price
    CABLE-SUPPLY - 5000094675×2
  • 395000012997Price
    NUT-LOCK,M5 - 5000012997×6
  • 405000069298Not stocked
    Terminal board×1
  • 415000011571Not stocked
    Cheese head screw×1
  • 425002006450Price
    Gasket - 5002006450×1
  • 435000219173Price
    Label - 5000219173×1
