External Vibrator AR 3/2 W/S

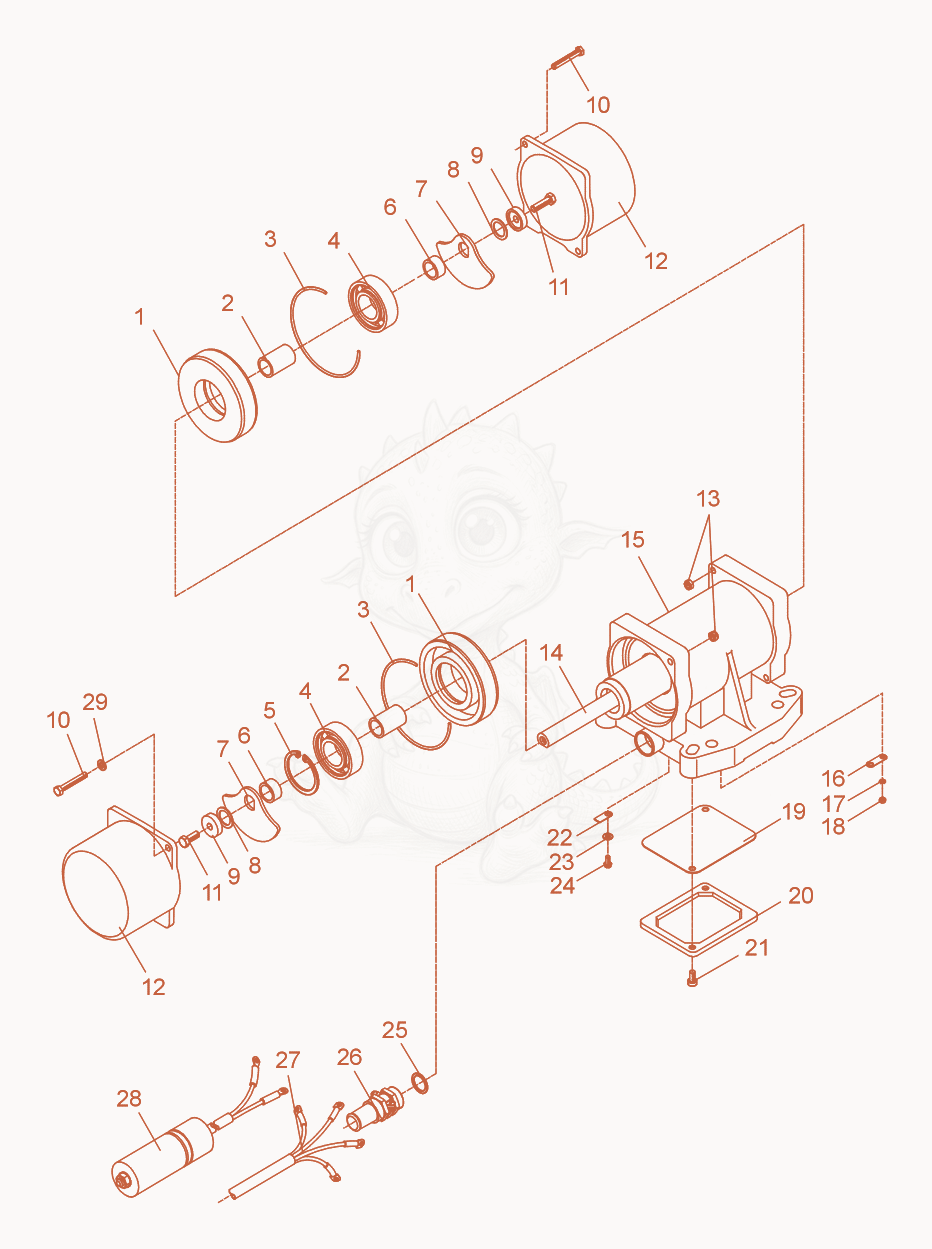

AR3/2W/S External Vibrator cpl. Diagram

Exploded parts diagram of the External Vibrator cpl. of a Wacker Neuson AR3/2W/S, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000063118Not stocked
    Bearing bracket×2
  • 25000063225Not stocked
    Spacer ring×2
  • 35000064674Price
    O-Ring - 5000064674×2
  • 45000063223Price
    BEARING-RADIAL BALL,6302 - 5000063223×2
  • 65000063226Price
    RING-DISTANCE - 5000063226×2
  • 75000063179Price
    WEIGHT-ECCENTRIC,AR 3... - 5000063179×30
  • 85002006965Price
    RING-SUPPORT - 5002006965×2
  • 95000063237Price
    WASHER-SPRING - 5000063237×2
  • 105000011472Not stocked
    Hexagonal head cap screw×4
  • 115000011470Price
    SCREW M6 X 20 HX.HD. - 5000011470×2
  • 125000125229Price
    cover - 5000125229×2
  • 135000017312Not stocked
    Hexagon nut×4
  • 145000063229Price
    ARMATURE - 5000063229×1
  • 155000067905Not stocked
    Motor housing cpl.×1
  • 165002004538Price
    STRIP-TERMINAL BOX CONNCT - 5002004538×1
  • 175000012641Price
    washer - 5000012641×6
  • 185000013177Price
    NUT-LOCK,M3 - 5000013177×6
  • 195000063190Price
    Gasket - 5000063190×1
  • 205000058791Price
    COVER-TERMINAL BOX - 5000058791×1
  • 215000063238Price
    SCREW M5 X 10 SOCKET HD - 5000063238×2
  • 225002003378Price
    LABEL-GROUND SYMBOL - 5002003378×1
  • 235000012642Price
    WASHER B4.3 MS,FLAT - 5000012642×1
  • 245000011725Price
    SCREW M4 X 8 CHEESE HD. - 5000011725×1
  • 255002000058Price
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 265000063178Price
    NUT-ELE.CABLE PASSAGE - 5000063178×1
  • 275000064364Not stocked
    Power supply cable×1
  • 285000064363Not stocked
    Capacitor×1
  • 295000010625Price
    WASHER B5.3 FLAT - 5000010625×4
