AP1550R

AP1550R Carburetor cpl. Diagram

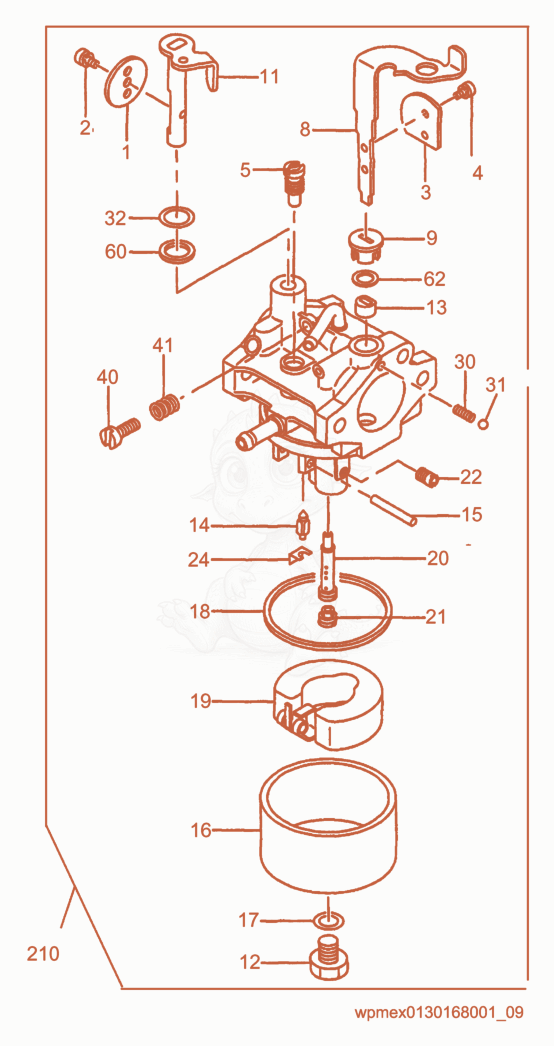

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson AP1550R, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000077417Not stocked
    Valve×1
  • 25000088468Not stocked
    Screw×1
  • 35000158375Not stocked
    Choke valve×1
  • 45000156408Not stocked
    Screw×2
  • 55000158372Not stocked
    Idle jet×1
  • 85000088470Not stocked
    Choke shaft×1
  • 95000151195Price
    Ring - 5000151195×1
  • 115000088469Price
    SHAFT-THROTTLE - 5000088469×1
  • 125000088474Not stocked
    Bolt×1
  • 135000053695Not stocked
    Insert×1
  • 145000151199Price
    NEEDLE-VALVE - 5000151199×1
  • 155000053686Not stocked
    Pin×1
  • 165000088473Not stocked
    Carburetor bowl×1
  • 175000053688Price
    Gasket - 5000053688×1
  • 185000053684Not stocked
    Gasket×1
  • 195000077416Price
    FLOAT-ASSEMBLY - 5000077416×1
  • 205000158373Not stocked
    Main jet×1
  • 215000115773Not stocked
    Guide×1
  • 225000158371Not stocked
    Main jet×1
  • 245000156418Not stocked
    Clip×1
  • 305000044827Not stocked
    Spring×1
  • 315000044828Not stocked
    Ball×1
  • 325000084501Not stocked
    Gasket×1
  • 405000088475Not stocked
    Throttle stop screw×1
  • 415000053699Not stocked
    Spring×1
  • 605000158354Not stocked
    Gasket×1
  • 625000115767Not stocked
    Seal×1
  • 2105000158374Price
    CARBURETOR ASSEMBLY - 5000158374×1
