A3000-POWER UNIT,HONDA

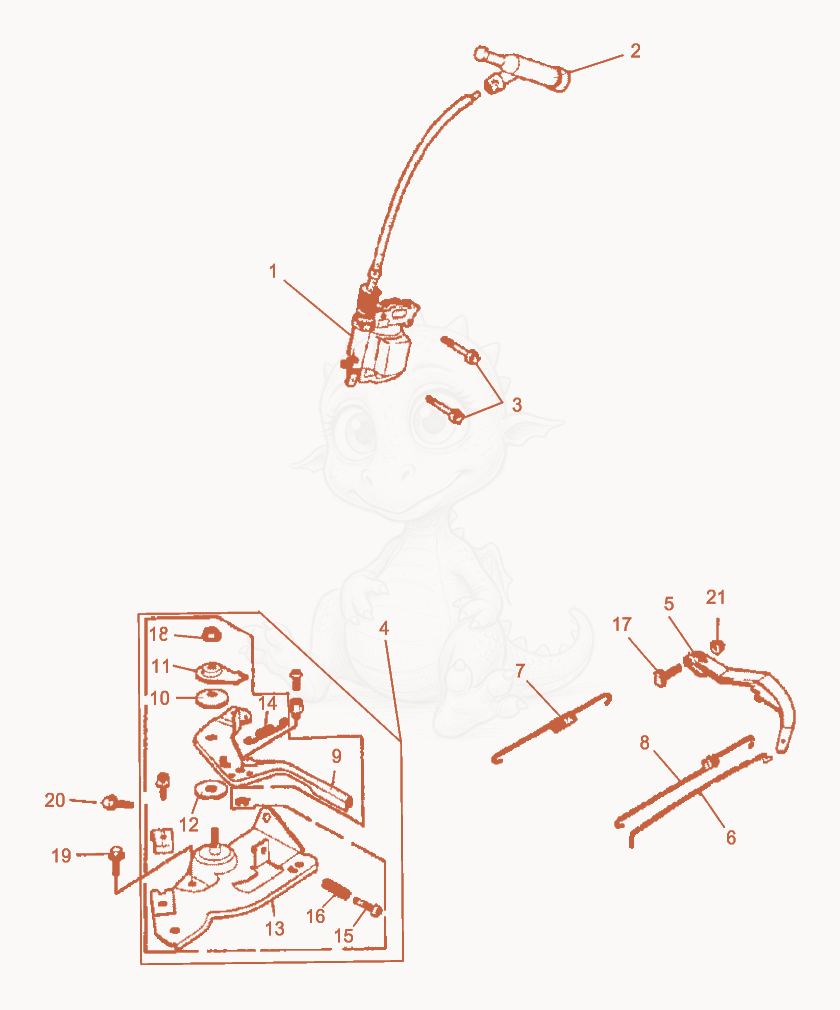

A3000 Magneto Armature-Throttle Control Diagram

Exploded parts diagram of the Magneto Armature-Throttle Control of a Wacker Neuson A3000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000070973Not stocked
    Ignition coil×1
  • 25000070974Price
    CAP-SPARK PLUG TERMINAL - 5000070974×1
  • 35000081737Price
    SCREW M6 X 25, FLANGED - 5000081737×2
  • 45000107087Not stocked
    Carburet throttle controls cpl.×1
  • 55000071065Price
    Spring - 5000071065×1
  • 65000071068Not stocked
    Governor rod×1
  • 75000081070Price
    SPRING-GOVERNOR CONTROL - 5000081070×1
  • 85000081743Price
    SPRING-THROTTLE RETURN - 5000081743×1
  • 95000081797Not stocked
    Control lever×1
  • 105000071058Price
    WASHER-CONCAVE - 5000071058×1
  • 115000071057Price
    WASHER - 5000071057×1
  • 125000071064Price
    SPACER - 5000071064×1
  • 135000076937Price
    MOUNT-REMOTE CONTROL SUPPORT - 5000076937×1
  • 145000071667Price
    Spring - 5000071667×1
  • 155000081990Price
    SCREW M5 X 25 - 5000081990×1
  • 165000054088Price
    SPRING-ADJUSTING - 5000054088×1
  • 175000068966Price
    Screw - 5000068966×1
  • 185000072782Price
    NUT-LOCK M6,HEX. - 5000072782×1
  • 195000053990Price
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
  • 205000071055Price
    SCREW M6 X 20,HX.FLANGE - 5000071055×1
  • 215000071037Not stocked
    Nut×1
