Neuson 6502WD

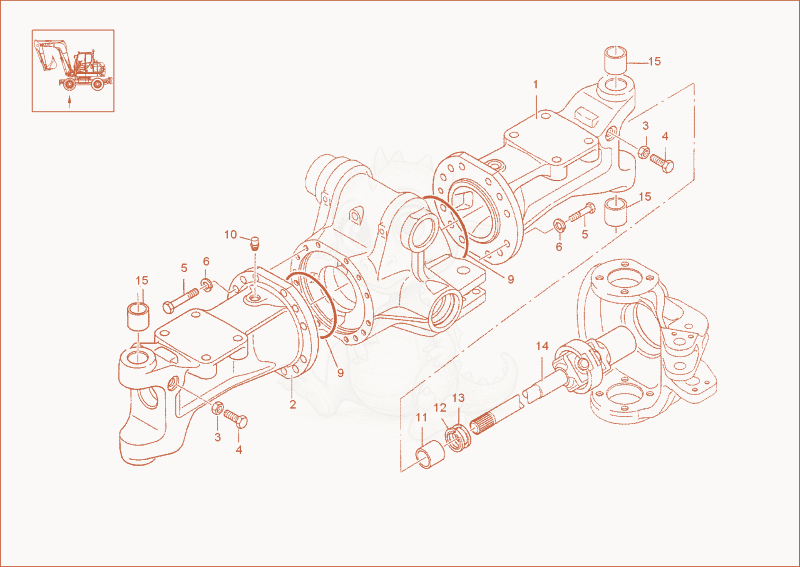

6502WD steering axle-axle carrier Diagram

Exploded parts diagram of the steering axle-axle carrier of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000071755Not stocked
    axle carrier×1
  • 21000071756Not stocked
    axle carrier×1
  • 31000071757Not stocked
    hexagon nut×2
  • 41000071758Not stocked
    hex screw×2
  • 51000085429Price
    HEX SCREW - 1000085429×28
  • 61000071759Not stocked
    he-s ring×28
  • 91000071722Price
    O-RING - 1000071722×2
  • 101000071721Price
    BREATHER - 1000071721×1
  • 111000071760Not stocked
    bushing×2
  • 121000071821Not stocked
    rotary shaft seal×2
  • 131000071822Not stocked
    rotary shaft seal×2
  • 141000071553Not stocked
    double cardan shaft×2
  • 151000071761Not stocked
    bushing×4
