WN Excavator 6003

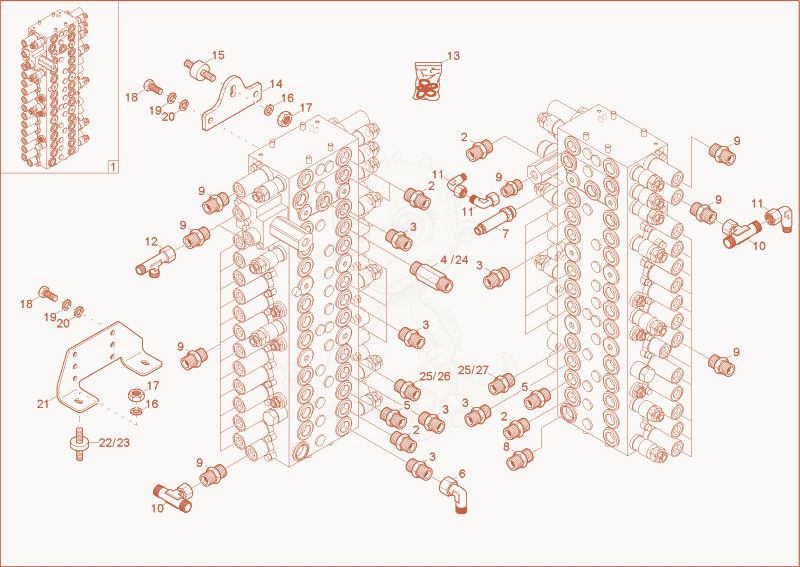

6003 CONTROL VALVE 1 (OPTION) Diagram
- Controlblock 1000147380×1
- GE15LR1/2OROMDA3C - 1000082964×5
- GE18LR1/2OROMDA3C - 1000083048×15
- 41000082974Not stockedscrew joint×1
- GE12LR1/2OROMDA3C - 1000082970×2
- 61000015513Not stockedscrew joint×1
- 71000112355Not stockedscrew connection×1
- GE22LR3/4OROMDA3C - 1000082977×1
- GE08LR1/4OROMDA3C - 1000082963×30
- ET08LOMDA3C - 1000015518×2
- EW08LOMD - 1000000542×3
- 121000015515Not stockedscrew joint×2
- SEAL KIT CONTROL VALVE - 1000146024×1
- fasten plate - 1000108286×1
- 151000079864Not stockedrubber buffer×1
- 161000015434Not stockedwasher×3
- nut M10-8 A2C-DIN985 - 1000015408×3
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
- 191000015438Not stockedlock washer×4
- washer 10,5 A2C DIN125 - 1000015432×4
- Anglebracket 1000110307×1
- 221000079864Not stockedrubber buffer×2
- 231000132877Not stockedrubber buffer×2
- GE18LR1/2OROMDA3C L=92MM - 1000132878×1
- GE12LR1/2OROMDA3C - 1000082970×2
- GE08LR1/2OROMDA3C - 1000128862×1
- GE10LR1/2OROMDA3C - 1000141556×1
