5001RDV

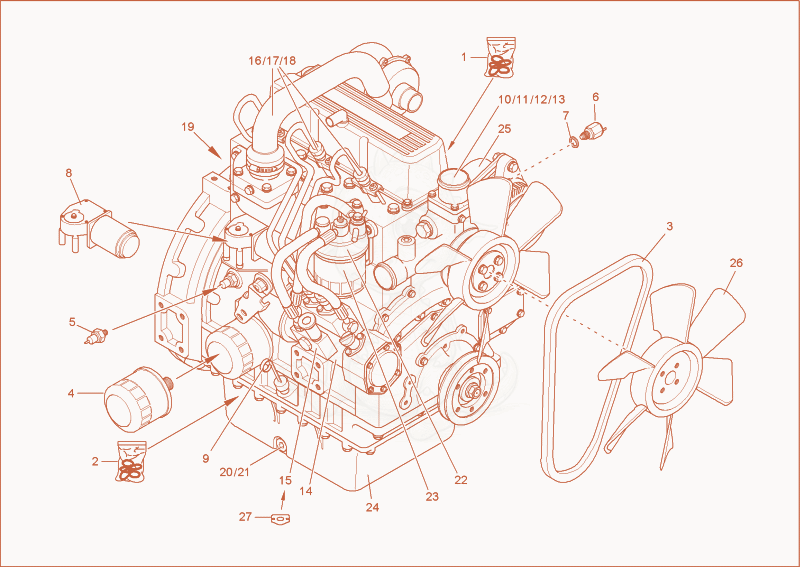

5001RDV diesel engine Diagram
- 11000019224Not stockedseal kit diesel engine×1
- 21000125575Not stockedseal kit×1
- 31000012349Not stockedv-belt×1
- 41000018587Not stockedengine oil filter×1
- 51000001014Not stockedoil pressure switch×1
- 61000003892Not stockedtemperature switch×1
- 71000002929Not stockedseal ring×1
- 81000012347Not stockedshut off solenoid×1
- 91000072785Not stockedoil dip stick×1
- 101000012354Not stockedwater pump×1
- 111000020160Not stockedseal water pump×1
- 121000012351Not stockedthermostat×1
- 131000002945Not stockedgasket thermostat×1
- 141000021369Not stockedinjection pump×1
- 151000012344Not stockedfuel pump×1
- 161000021065Not stockedinjection nozzle×3
- 171000012342Not stockednozzle insert×3
- 181000004679Not stockedseal ring×3
- 191000012343Not stockedstarter motor×1
- 201000012356Not stockeddrain screw×1
- 211000012360Not stockedengine gasket×1
- 221000012358Not stockedbracket filter×1
- 231000379275Not stockedfuel filter×1
- 241000012340Not stockedoil sump×1
- 251000012535Not stockedgenerator×1
- 261000012339Not stockedventilator fan×1
- 271000072809Not stockedengine gasket×1
