WN Dumper 4001

4001 Axle Diagram

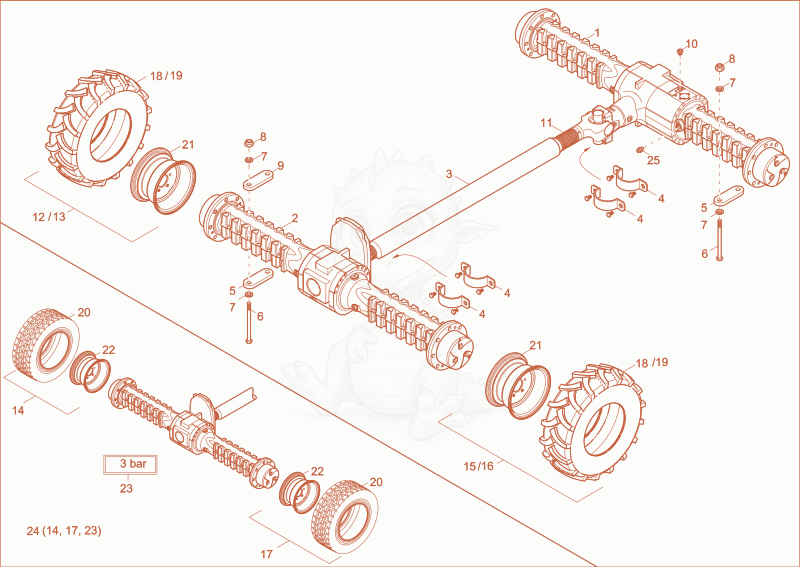

Exploded parts diagram of the Axle of a Wacker Neuson 4001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000108759Price
    Frontaxle 1000108759×1
  • 21000108770Price
    Rearaxle 1000108770×1
  • 31000075035Price
    Cardanshaft 1000075035×1
  • 41000073331Price
    fastener set - 1000073331×4
  • 51000334318Not stocked
    axle bracket×4
  • 61000085351Price
    HEX SCREW - 1000085351×8
  • 71000094973Price
    NORTHLOCK DISC - 1000094973×16
  • 81000021948Not stocked
    hexagon nut×8
  • 91000075215Not stocked
    distance plate×2
  • 101000073309Not stocked
    screw end piece×1
  • 111000124834Price
    BELLOW - 1000124834×1
  • 121000399204Not stocked
    wheel×2
  • 131000399206Not stocked
    wheel×2
  • 141000106969Not stocked
    gulf field tyres×2
  • 151000399205Not stocked
    wheel×2
  • 161000399207Not stocked
    wheel×2
  • 171000106980Not stocked
    gulf field tyres×2
  • 181000099379Price
    Tyre 1000099379×4
  • 191000240338Not stocked
    tyre×4
  • 201000107689Not stocked
    tyre×4
  • 211000075038Price
    Rim 1000075038×4
  • 221000062567Price
    RIM - 1000062567×4
  • 231000080084Price
    sticker 3 bar - 1000080084×4
  • 241000136382Price
    Gulffieldtirewrim 1000136382×1
  • 251000085090Price
    GE08LMEDOMDA3C - 1000085090×1
