SPARE PARTS LIST 3602RD Force SP

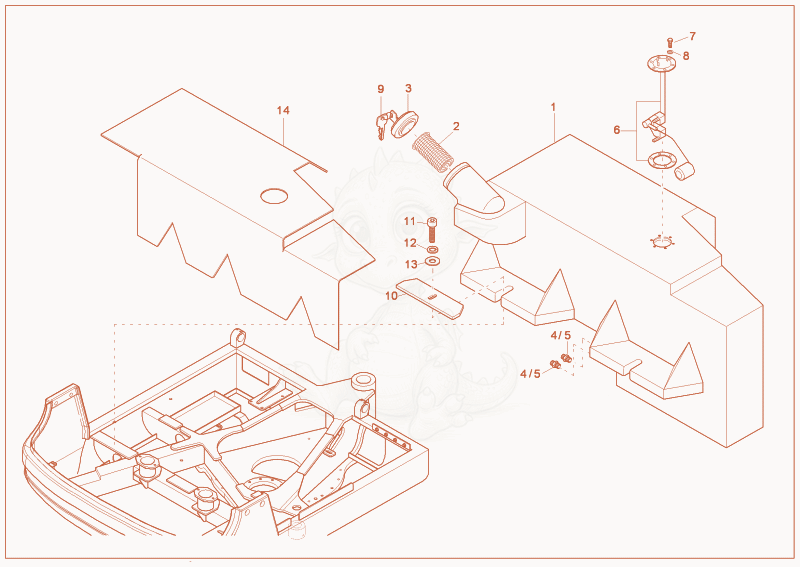

3602RDFORCE fuel tank Diagram

Exploded parts diagram of the fuel tank of a Wacker Neuson 3602RDFORCE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000070997Not stocked
    fuel tank×1
  • 21000002983Not stocked
    screen×1
  • 31000002884Not stocked
    filler cap×1
  • 41000016213Not stocked
    screw joint×2
  • 51000015488Not stocked
    screw joint×2
  • 61000003878Not stocked
    fuel transmitter×1
  • 71000082341Not stocked
    plywood screws×6
  • 81000094962Price
    washer A 5,3 A2C DIN125 - 1000094962×6
  • 91000002886Not stocked
    filler cap key×1
  • 101000071006Not stocked
    fixing plate tank×3
  • 111000085414Price
    hex screw - 1000085414×3
  • 121000015438Not stocked
    lock washer×3
  • 131000092303Price
    Washer 10,5 St A2C - 1000092303×3
  • 141000071170Not stocked
    insulating mat tank×1
