SPARE PARTS LIST 3501AB SP

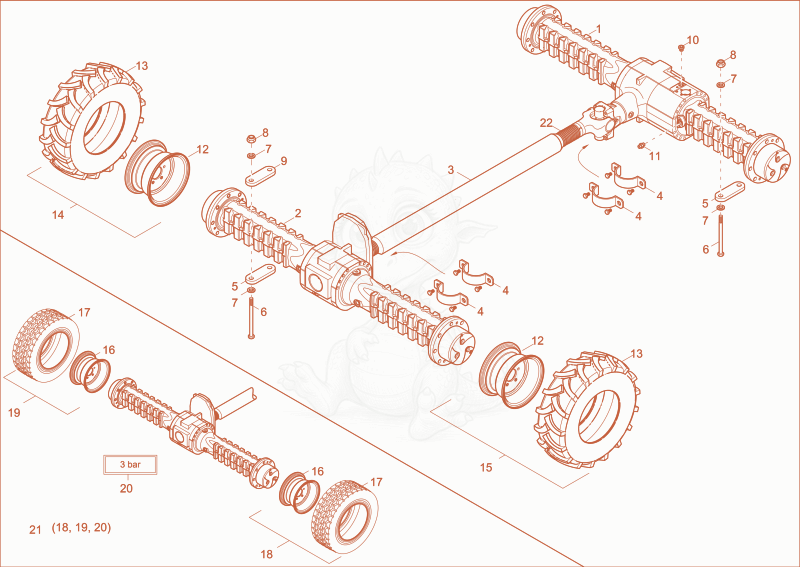

3501AB undercarriage Diagram

Exploded parts diagram of the undercarriage of a Wacker Neuson 3501AB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000100160Price
    Frontaxle 1000100160×1
  • 21000100159Price
    Rearaxle 1000100159×1
  • 31000075035Price
    Cardanshaft 1000075035×1
  • 41000073331Price
    fastener set - 1000073331×4
  • 51000334318Not stocked
    axle bracket×4
  • 61000085350Not stocked
    hex screw×8
  • 71000094973Price
    NORTHLOCK DISC - 1000094973×16
  • 81000021948Not stocked
    hexagon nut×8
  • 91000075215Not stocked
    distance plate×2
  • 101000073309Not stocked
    screw end piece×1
  • 111000085090Price
    GE08LMEDOMDA3C - 1000085090×1
  • 121000075038Price
    Rim 1000075038×4
  • 131000074959Not stocked
    tyre×4
  • 141000100127Not stocked
    wheel×2
  • 151000100126Not stocked
    wheel×2
  • 161000062567Price
    RIM - 1000062567×4
  • 171000107689Not stocked
    tyre×4
  • 181000106980Not stocked
    gulf field tyres×2
  • 191000106969Not stocked
    gulf field tyres×2
  • 201000080084Price
    sticker 3 bar - 1000080084×4
  • 211000136382Price
    Gulffieldtirewrim 1000136382×1
  • 221000124834Price
    BELLOW - 1000124834×1
