SPARE PARTS LIST 2702RD SP

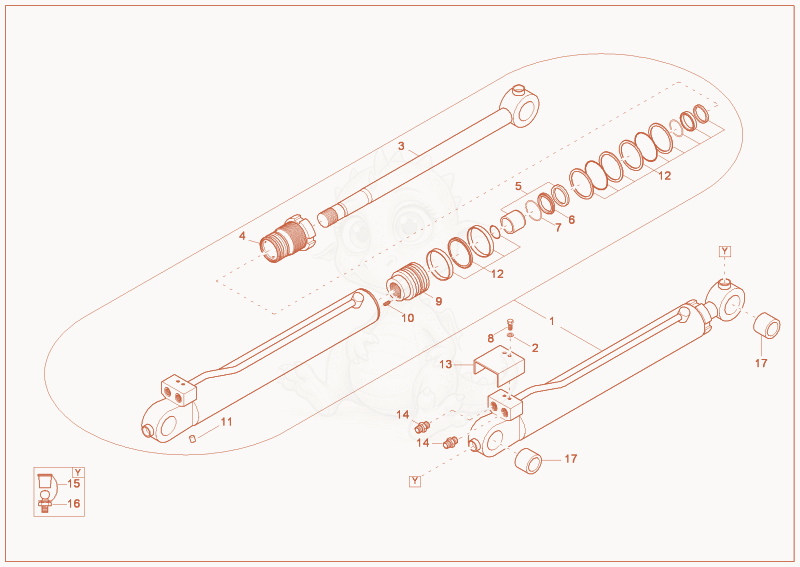

2702RD dipper arm cylinder Diagram
- 11000233828Not stockeddipper arm cylinder×1
- 21000082617Not stockedspring washer×2
- 31000070046Not stockedpiston rod×1
- 41000070042Not stockedguide bushing×1
- 51000146096Not stockedshock absorber×1
- 61000004685Not stockedfastenring×1
- 71000015467Not stockedlock ring×1
- hex screw M8x12-8.8 A2C DIN933 - 1000085389×2
- 91000093646Not stockedpiston×1
- 101000015374Not stockedthread pin×1
- 111000082822Not stockedballexpander×1
- 121000004705Not stockedcylinder seal kit×1
- 131000070437Not stockedprotection plate tick ram×1
- 141000015494Not stockedscrew joint×2
- 151000015480Not stockedcap grease nipple×2
- 161000015475Not stockedgrease nipple×2
- 171000015609Not stockedsteel bushing×2
