Neuson 2203RD

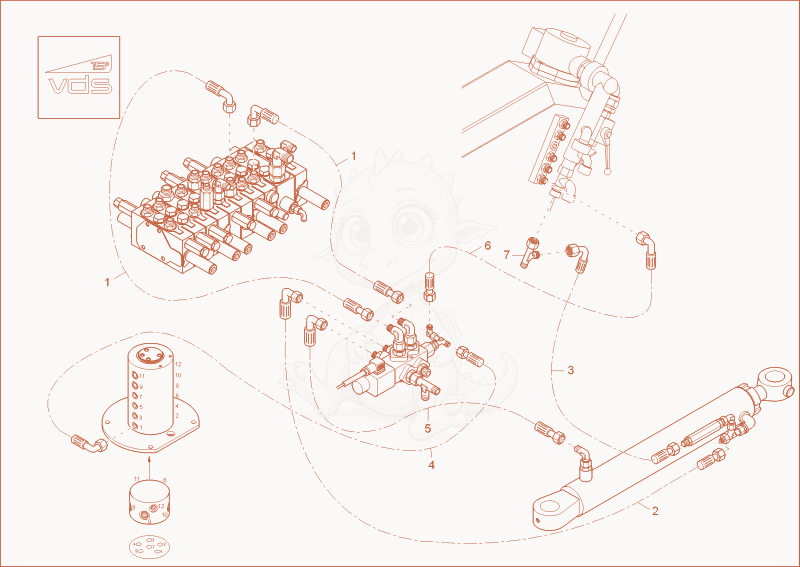

2203 BOOM OFFSET CYLINDER INSTALLATION Diagram

Exploded parts diagram of the BOOM OFFSET CYLINDER INSTALLATION of a Wacker Neuson 2203, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000077118Not stocked
    Hose×2
  • 21000104877Not stocked
    Hose×1
  • 31000076924Price
    SLHYDR 1SC 10 PN12 90 PN12 0 L1500 0 - 1000076924×1
  • 41000076662Not stocked
    Hose×1
  • 51000076640Not stocked
    Hose×1
  • 61000112774Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1100 0 - 1000112774×1
  • 71000015516Price
    EL12LOMDA3C - 1000015516×1
