WN Dumper 2001

2001 wiring harness engine Diagram

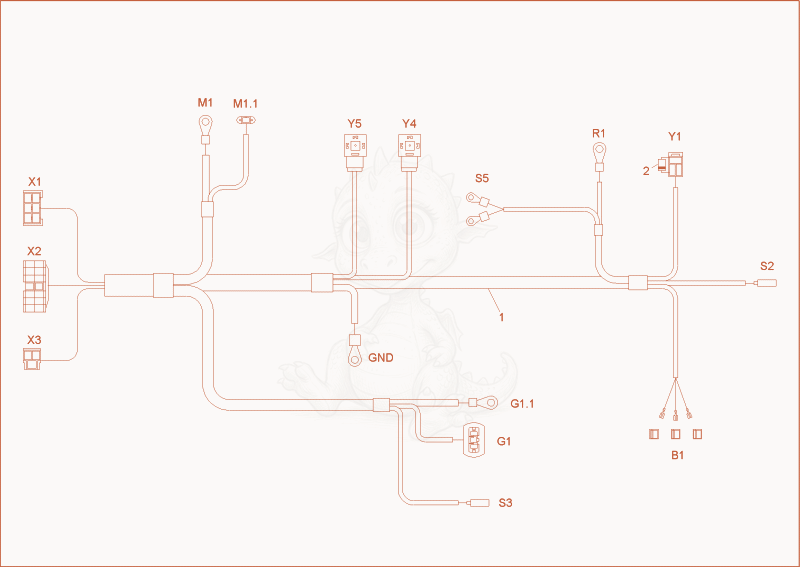

Exploded parts diagram of the wiring harness engine of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000148381Not stocked
    wiring harness engine×1
  • 21000096839Price
    diode - 1000096839×1
  • B11000027435Not stocked
    insulating sleeve×3
  • G11000110537Price
    bushing housing - 1000110537×1
  • G1.11000096859Price
    CABLE LUG - 1000096859×1
  • GND1000107756Price
    CABLE LUG - 1000107756×1
  • M11000107756Price
    CABLE LUG - 1000107756×1
  • M1.11000098799Price
    PLUG SLEEVE HOUSING - 1000098799×1
  • R11000096859Price
    CABLE LUG - 1000096859×1
  • S21000027384Not stocked
    round socket sleeve×1
  • S31000027384Not stocked
    round socket sleeve×1
  • S51000153698Price
    CABLE LUG - 1000153698×2
  • X11000095335Price
    plug housing - 1000095335×1
  • X21000100618Price
    Pin housing - 1000100618×1
  • X31000095338Price
    plug housing - 1000095338×1
  • Y11000101073Price
    PLUG SLEEVE HOUSING - 1000101073×1
  • Y41000002986Not stocked
    valve plug×1
  • Y51000002986Not stocked
    valve plug×1
