1501 TRAVELLING GEAR 1 Diagram

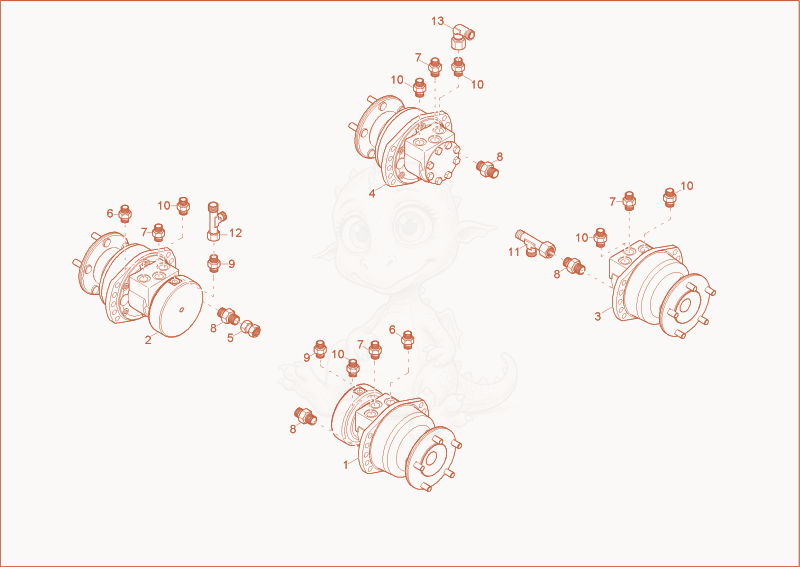

Exploded parts diagram of the TRAVELLING GEAR 1 of a Wacker Neuson 1501, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000065031Not stocked
hydraulic motor×1
21000065032Not stocked
hydraulic motor×1
31000100135Not stocked
wheel motor×1
41000100136Not stocked
wheel motor×1
51000085057Price
ET10LOMDA3C - 1000085057×1
61000015549Not stocked
screw joint×2
71000015497Not stocked
screw joint×4
81000022485Not stocked
screw joint×4
91000015488Not stocked
screw joint×2
101000015494Not stocked
screw joint×6
111000085089Price
EL10LOMDA3C - 1000085089×1
121000015515Not stocked
screw joint×1
131000015512Not stocked
screw joint×1
