SPARE PARTS LIST 1402RD Force SP

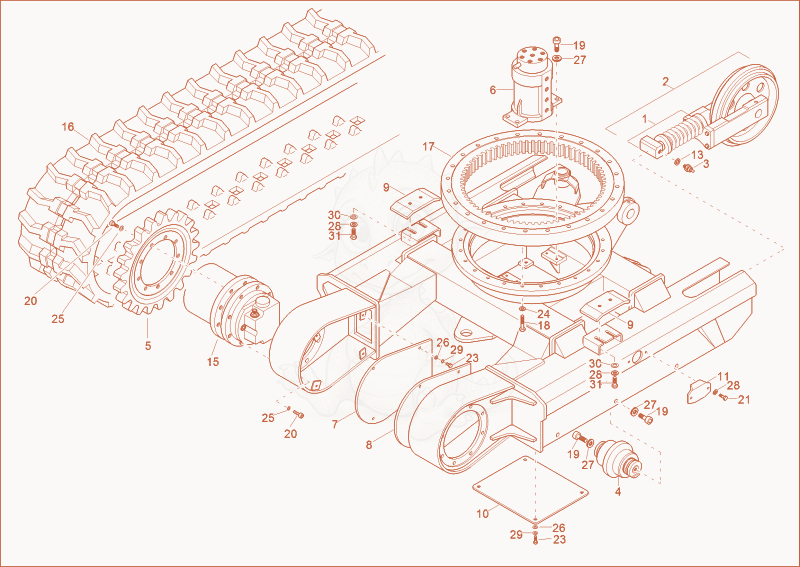

1402RDFORCE TRACKLAYING GEAR Diagram
- 11000065718Not stockedspring assembly×2
- 21000003859Not stockedtrack tensioner complete×2
- 31000183476Not stockednon return valve×2
- 41000003860Not stockedroller×6
- 51000065701Not stockeddrive wheel×2
- 61000065862Not stockedrotary junction×1
- 71000067135Not stockeddrive unit cover×1
- 81000067134Not stockedcover undercarriage×1
- 91000067136Not stockedslide plate×2
- 101000065695Not stockedcover undercarriage×1
- 111000068511Not stockedcover chain tensioner×2
- screw seal - 1000124948×2
- 151000065944Not stockeddrive unit×2
- 161000003864Not stockedrubber track×2
- 171000002889Not stockedslewing ring×1
- 181000015372Not stockedhex screw×24
- cheese head screw - 1000082295×16
- allen screw M10x30 Geomet 500A DIN912 - 1000085502×34
- 211000013009Not stockedhex screw×34
- 231000013008Not stockedhex screw×12
- washer 13 A2C DIN6916 - 1000082611×24
- 251000022016Not stockedspring washer×34
- 261000013027Not stockedwasher×12
- 271000015449Not stockednorthlock disc×16
- 281000015438Not stockedlock washer×12
- 291000015437Not stockedlock washer×12
- washer 10,5 A2C DIN125 - 1000015432×4
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×4
