SPARE PARTS LIST 1302RD Primus SP

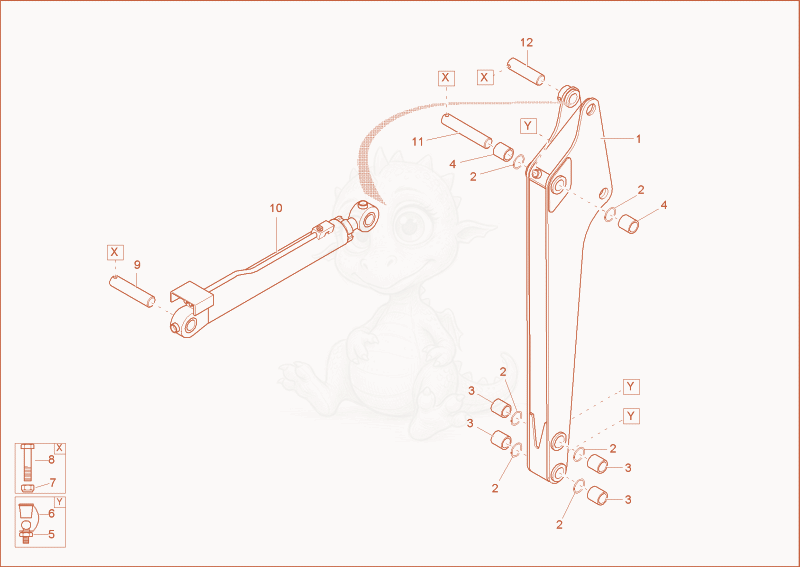

1302RDPRIMUS dipperstick Diagram
- 11000112987Not stockeddipperstick×1
- 21000015466Not stockedlock ring×6
- 31000015617Not stockedsteel bushing×4
- 41000015617Not stockedsteel bushing×2
- 51000015475Not stockedgrease nipple×3
- 61000015480Not stockedcap grease nipple×3
- DIN985-M8-8-A2C - 1000015416×3
- 81000022334Not stockedhex screw×3
- 91000003028Not stockedpin×1
- 101000003900Not stockeddipper arm cylinder×1
- 111000003027Not stockedpin×1
- 121000003026Not stockedpin×1
