Vibroplate MP15-CN

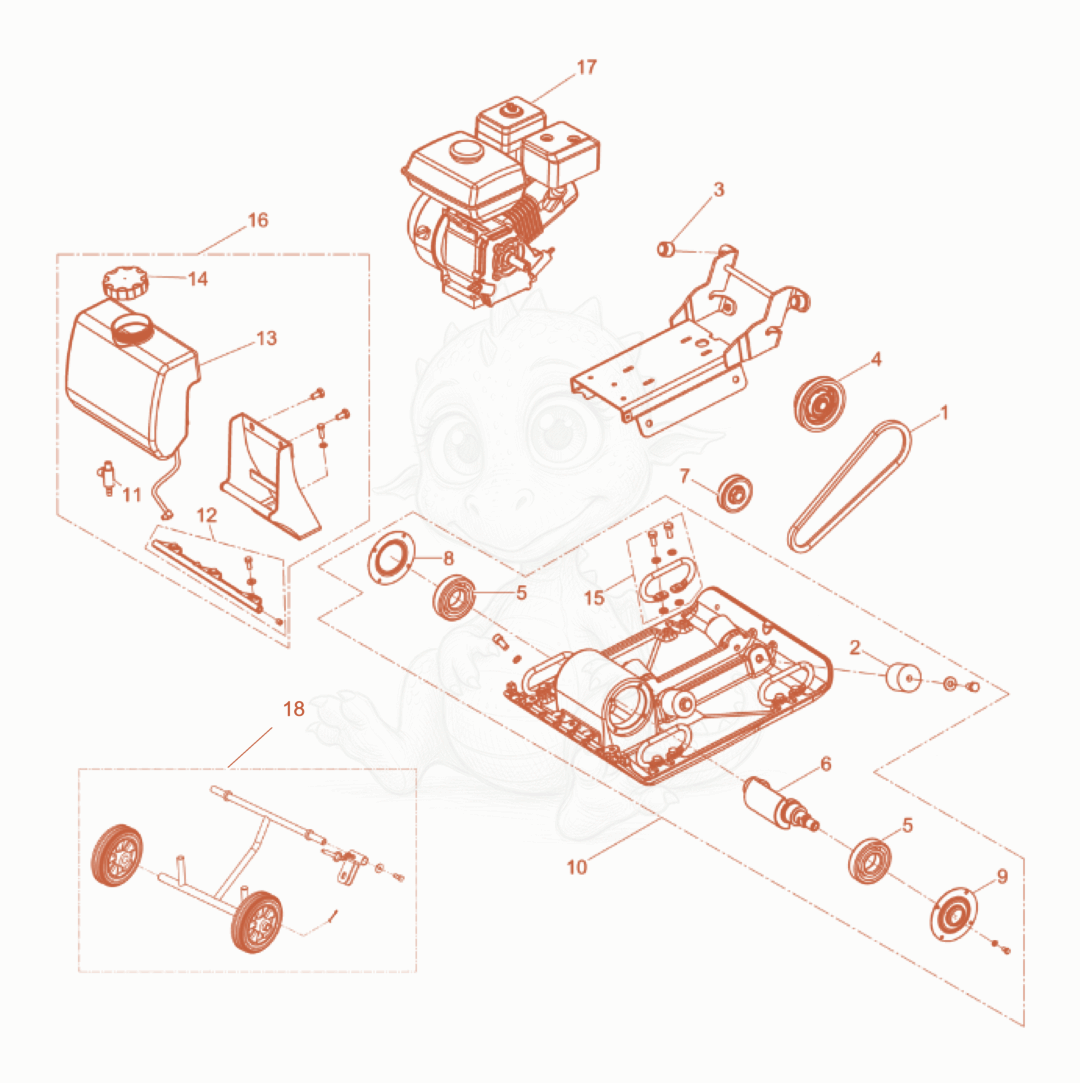

MP15 Vibration Plate cpl. Diagram

Exploded parts diagram of the Vibration Plate cpl. of a Wacker Neuson MP15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100072648Not stocked
    Belt×1
  • 25100058397Price
    SHOCKMOUNT - 5100058397×4
  • 35100058399Price
    SHOCKMOUNT - 5100058399×2
  • 45100061214Not stocked
    CLUTCH-CENTRIFUGAL 20mm×1
  • 55000403573Price
    Bearing-Radial Ball - 5000403573×2
  • 65000403566Price
    Shaft Exciter-machined - 5000403566×1
  • 75000403567Price
    Pulley-machined - 5000403567×1
  • 85000408263Price
    Cap end w/out hole - 5000408263×1
  • 95000409295Price
    Cap end cpl. - 5000409295×1
  • 105100079552Not stocked
    Baseplate Kit (MP15-CN)×1
  • 115100079751Not stocked
    Valve-Shut Off NPT 1/8-27×1
  • 125100052075Price
    Water Manifold Kit (MP15/20) - 5100052075×1
  • 135000406550Price
    Tank - 5000406550×1
  • 145000406738Price
    Cap - 5000406738×1
  • 155100078611Not stocked
    Handle lifting kit×4
  • 165000408427Not stocked
    Water System×1
  • 175000409306Price
    Engine Loncin G210FA-CN - 5000409306×1
  • 185100054403Not stocked
    Wheel kit cpl.×1
