LTT4 Light Tower 50HZ

LTT4 Control Panel/Receptacle Panel 50Hz Diagram

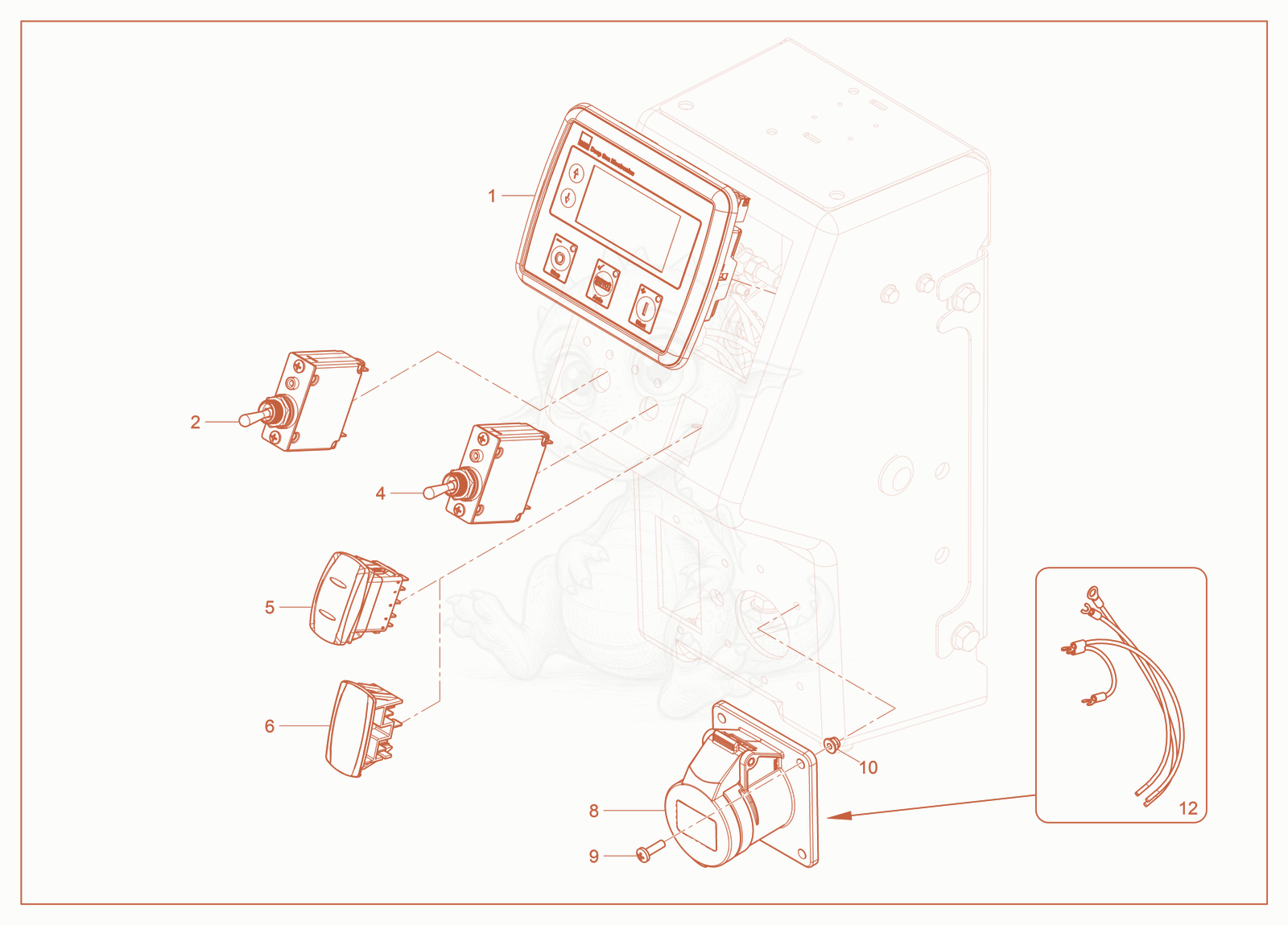

Exploded parts diagram of the Control Panel/Receptacle Panel 50Hz of a Wacker Neuson LTT4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100071299Price
    CONTROLLER L401MKII LTT 230V 50HZ - 5100071299×1
  • 25100068475Price
    BREAKER-CIRCUIT,1P,20A, SEALED - 5100068475×1
  • 45100068475Price
    BREAKER-CIRCUIT,1P,20A, SEALED - 5100068475×1
  • 55100067999Price
    SWITCH ROCKER POWER WINCH - 5100067999×1
  • 61000342613Price
    COVER SWITCH - 1000342613×1
  • 85100036689Price
    RECEPTACLE CEE 230V STRAIGHT - 5100036689×1
  • 95000110405Price
    SCREW M4 X 14 PHIL HD - 5000110405×4
  • 105000010370Price
    NUT-LOCK M4 HEX. - 5000010370Unknown×4
  • 105000010628Not stocked
    Flat washer×4
  • 125100067785Price
    HARNESS 230V CEE - 5100067785×1
