GV7000A-50 HZ VALUE GEN,SWISS

GV7000A Flywheel/Blower Housing Diagram

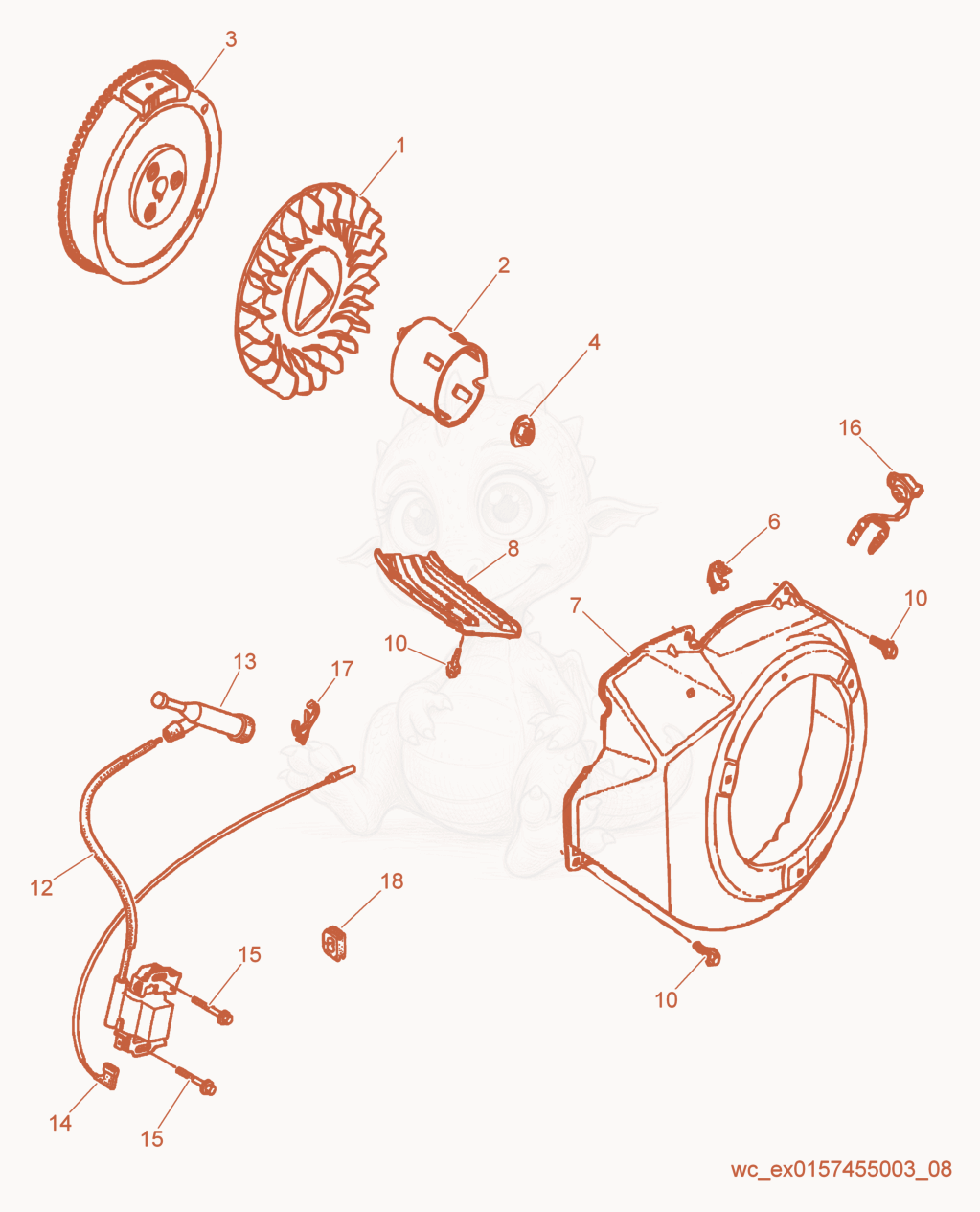

Exploded parts diagram of the Flywheel/Blower Housing of a Wacker Neuson GV7000A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000209989Price
    FAN - 5000209989×1
  • 25000089276Price
    PULLEY-STARTER - 5000089276×1
  • 35000116735Price
    Flywheel - 5000116735×1
  • 45000116736Price
    NUT,SPECIAL - 5000116736×1
  • 55000074672Price
    KEY-WOODRUFF 25 X 18 - 5000074672×1
  • 65000074689Price
    CLIP - 5000074689×1
  • 85000082837Price
    COVER-SHROUD - 5000082837×1
  • 105000053990Price
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×1
  • 115000076375Not stocked
    Clip×1
  • 125000081672Not stocked
    Ignition coil×1
  • 135000070974Price
    CAP-SPARK PLUG TERMINAL - 5000070974×1
  • 145000082846Price
    WIRE-STOP SWITCH - 5000082846×1
  • 155000070966Price
    SCREW M6 X 28,HX.FLANGE - 5000070966×2
  • 165000208618Not stocked
    Shutoff switch×1
  • 175000076375Not stocked
    Clip×1
  • 185000081611Price
    grommet - 5000081611×1
