G70-GENERATOR,SKID BASE

G70 Receptacle Panel cpl. Diagram

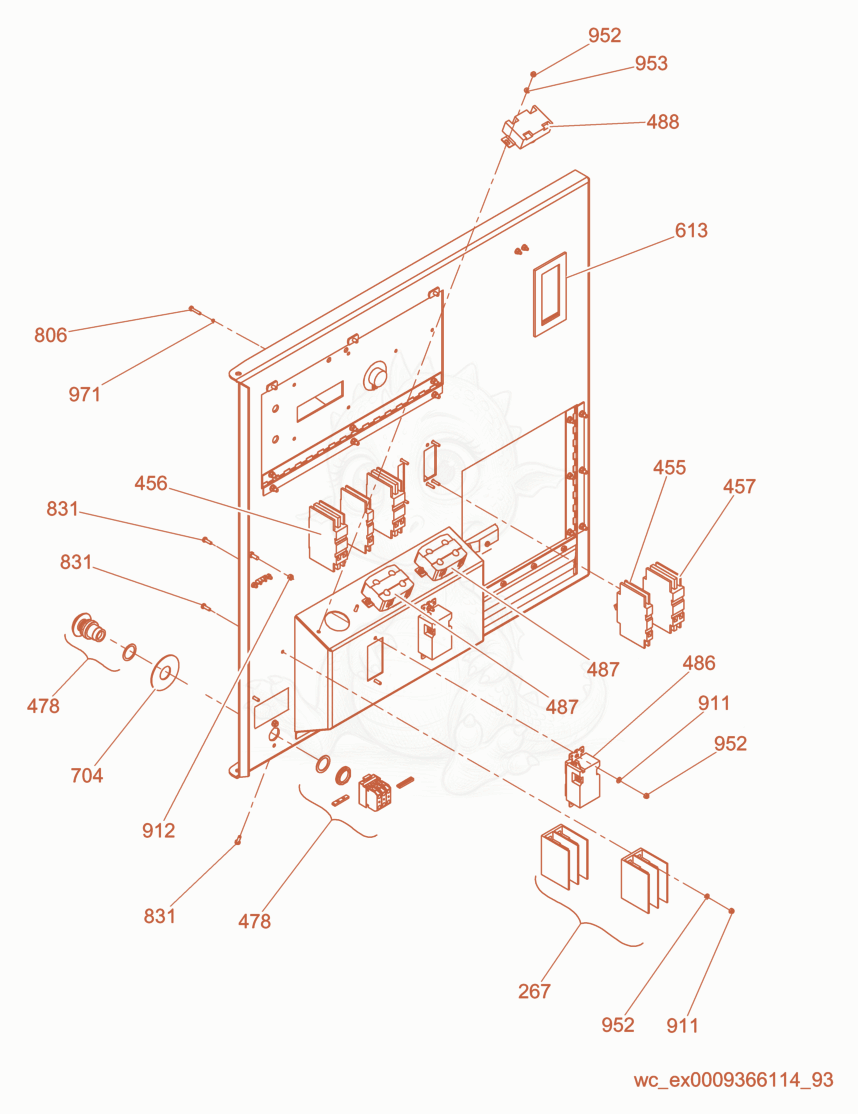

Exploded parts diagram of the Receptacle Panel cpl. of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2675000160091Price
    TERMINAL-BLOCK - 5000160091×2
  • 4555000153263Price
    BREAKER-TOGGLE - 20A - 5000153263×2
  • 4565000153264Price
    BREAKER-30 AMP CIRCUIT - 5000153264×1
  • 4575000153265Price
    BREAKER,50 AMP CIRCUIT - 5000153265×2
  • 4785000165354Price
    SWITCH-E STOP ASSEMBLY - 5000165354×1
  • 4865000089849Not stocked
    GFI Receptacle Kit×2
  • 4875000153277Price
    RECEPTACLE,50 AMP TWIST LOCK - 5000153277×2
  • 4885000088827Price
    RECEPTACLE-L14-30, 30 AMP - 5000088827×1
  • 6135000160647Price
    SEAL-CIRCUIT BREAKER - 5000160647×1
  • 7045000155460Price
    LABEL-EMERGENCY STOP - 5000155460×1
  • 8065000154513Not stocked
    Screw×16
  • 8285000154516Price
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×2
  • 8315000110405Price
    SCREW M4 X 14 PHIL HD - 5000110405×12
  • 9115000010370Price
    NUT-LOCK M4 HEX. - 5000010370×12
  • 9125000010369Price
    NUT-LOCK M5 HEX. - 5000010369×1
  • 9525000010628Not stocked
    Flat washer×12
  • 9535000010625Price
    WASHER B5.3 FLAT - 5000010625×2
  • 9715000154532Price
    WASHER-LOCK M3.5 ZP - 5000154532×16
