G25-GENERATOR,CUSTOM

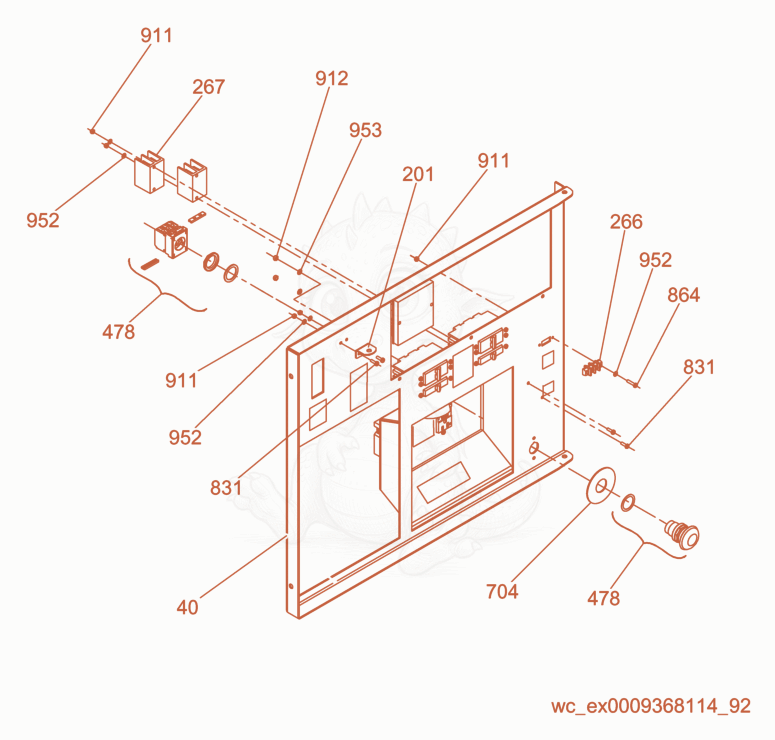

G25 Control Door cpl. Diagram

Exploded parts diagram of the Control Door cpl. of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 405000158009Price
    PANEL-CONTROL BOX,FRONT SML - 5000158009×1
  • 2015000158903Price
    BRACKET-PROP ROD - 5000158903×1
  • 2665000159130Price
    BLOCK-TERMINAL,2 POSITION - 5000159130×1
  • 2675000158783Price
    BLOCK-TERMINAL 2 POLE X 4 CONT - 5000158783×2
  • 4785000165354Price
    SWITCH-E STOP ASSEMBLY - 5000165354×1
  • 7045000155460Price
    LABEL-EMERGENCY STOP - 5000155460×1
  • 8315000110405Price
    SCREW M4 X 14 PHIL HD - 5000110405×4
  • 8645000110951Price
    SCREW M4 X 20 PHIL HD - 5000110951×2
  • 9115000010370Price
    NUT-LOCK M4 HEX. - 5000010370×6
  • 9125000010369Price
    NUT-LOCK M5 HEX. - 5000010369×2
  • 9525000010628Not stocked
    Flat washer×6
